TE Connectivity

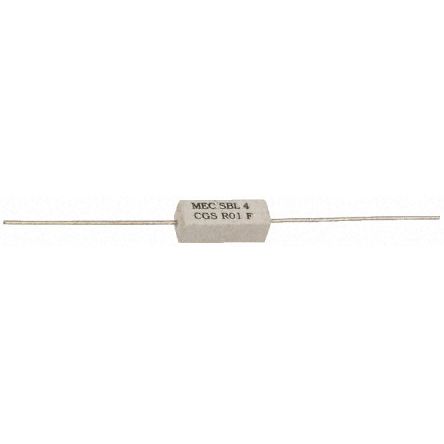

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 零件号别名 | 1-1623819-1 |
| 寿命 | New At Mouser |
| 机箱样式 | Ceramic |
| 深度 | 6.4mm |
| 外形尺寸 | 18 x 6.4 x 6.4mm |
| 身高 | 6.4mm |
| 长度 | 18mm |
| 最高工作温度 | +250°C |
| 最低工作温度 | -55°C |
| 额定功率 | 4W |
| 电阻 | 33mΩ |
| 技术 | Metal Foil |
| 端接类型 | Axial |
| 容差 | ±5% |
| RoHS指令 | Compliant |
| 表壳宽度 | 6.4 mm |
| 工作温度范围 | - 55 C to + 250 C |
| 温度系数 | 270 PPM / C |
| 表壳长度 | 18 mm |
| 表壳厚度 | 6.4 mm |
| 类型 | Fixed Resistors |
| 标准包装 | 100 |
| 产品范围 | :TE CONNECTIVITY - SBL Series |
| 电阻公差 | :± 5% |
| Resistor Case Style | :Axial Leaded |
| Resistor Element Material | :Wirewound |
| 额定电压 | :400mV |
| 外部深度 | :6.4mm |
| External Length / Height | :20mm |
| 外宽 | :6.4mm |
| Full Power Rating Temperature | :70°C |
| 绝缘电阻 | :1000Mohm |
| 引线直径 | :0.8mm |
| No. of Pins | :2 |
| Operating Temperature Max | :250°C |
| Operating Temperature Min | :-55°C |
| Resistor Mounting | :Through Hole |
| 系列 | :SBL4 |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| Tolerance + | :5% |
| Tolerance - | :5% |
| Weight (kg) | 0.002 |
| Tariff No. | 85322200 |
| Brand/Series | SBLSeries |
| Material,Element | MetalFilm |
| PackageType | CeramicHoused |
| Power,Rating | 4W |
| 端子 | Axial |
| TycoPartNumber | 1-1623819-1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
