TE Connectivity / P&B

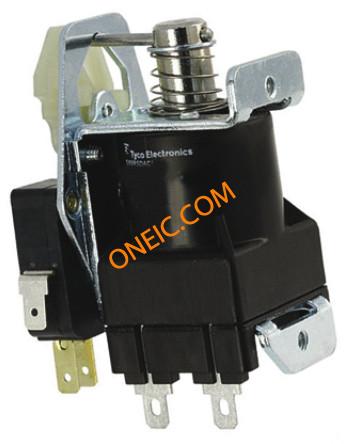

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Industrial Relays |
| RoHS | No |
| 触点形式 | 1 Form C (SPDT-BM) |
| 触点额定电流 | 15 A |
| 线圈电压 | 120 V |
| 线圈电阻 | 260 Ohms |
| 线圈电流 | 75 mA |
| 安装风格 | Socket |
| 触点材料 | Silver |
| 线圈类型 | Latching Bistable 1 Coil |
| 接触端子 | Quick Connect |
| 身高 | 61.5 mm |
| 长度 | 68.6 mm |
| 功耗 | 9 VA |
| 系列 | S89R |
| 工厂包装数量 | 25 |
| 类型 | Impulse Relay |
| 宽度 | 50.8 mm |
| 零件号别名 | 5-1393134-9 |
| 应用 | General Purpose |
| 联系配置 | SPDT |
| 安装类型 | Socket Mount |
| 终端类型 | Quick Connect |
| RoHS指令 | Compliant |
| 产品范围 | :TE - S89R Series |
| Contact Current | :15A |
| Contact Voltage VAC | :250V |
| Contact Voltage VDC | :250V |
| No. of Poles | :1 |
| Weight (kg) | 0.159 |
| Tariff No. | 85364900 |
| Brand/Series | S89RSeries |
| ContactForm | SPDT |
| CurrentRating | 15A |
| Current,Rating | 15A |
| 外形尺寸 | 2.702in.Lx2.001in.Wx2.423in.H |
| 功能 | GeneralPurpose |
| LatchType | Bistable |
| Material,Contact | Silver |
| MountingType | Socket |
| RelayType | ElectroMechanical |
| 标准 | UL,CSA,RoHS |
| 端子 | QuickConnect |
| TycoPartNumber | 5-1393134-9 |
| Voltage,Control | 120VAC |
| Voltage,Rating | 250VAC/VDC |
