TE Connectivity / Schrack

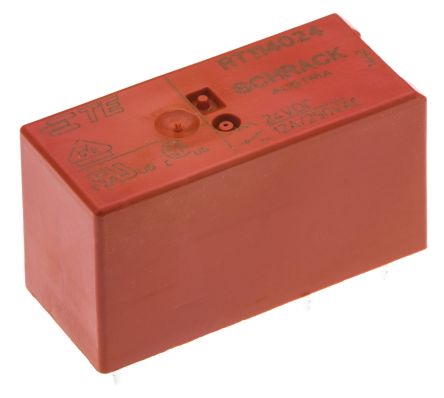

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | General Purpose Relays |
| RoHS | RoHS Compliant |
| 触点形式 | 1 Form C (SPDT-BM) |
| 线圈电压 | 24 V |
| 线圈电阻 | 1440 Ohms |
| 安装风格 | Through Hole |
| 触点材料 | Silver Nickel |
| 线圈类型 | Monostable |
| 身高 | 15.7 mm |
| 长度 | 29 mm |
| 封装 | Tube |
| 功耗 | 400 mW |
| 系列 | RT1 |
| 宽度 | 12.7 mm |
| 零件号别名 | 1-1393239-3 |
| 线圈电流 | 16.7mA |
| 开启电压（最大值） | 16.8 VDC |
| 产品特点 | Insulation - Class F, Sealed - Flux Protection |
| 关闭电压（最小值） | 2.4 VDC |
| 线圈功率 | 400 mW |
| 继电器类型 | General Purpose |
| 端接类型 | PC Pin |
| 切换电压 | 400VAC - Max |
| 释放时间 | 6ms |
| 工作温度 | -40°C ~ 85°C |
| 操作时间 | 8ms |
| 触点额定值（电流） | 12A |
| 标准包装 | 20 |
| 安装类型 | Through Hole |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | Power |
| 联系配置 | SPDT |
| 深度 | 12.7mm |
| 最高工作温度 | +85°C |
| 最大开关电源AC | 3 kVA |
| 最低工作温度 | -40°C |
| 终端类型 | Through Hole |
| 触点额定电流 | 12 A |
| 类型 | Power Relay |
| 接触端子 | Pin |
| 产品范围 | :TE - Power PCB Relay RT1 Series |
| Contact Current | :12A |
| Contact Voltage VAC | :250V |
| Relay Mounting | :Through Hole |
| Approval Bodies | :BEAB, CSA, KEMA-KEUR, VDE |
| Approval Category | :UL Recognised |
| Coil Voltage VDC Nom | :24V |
| Contact Current Max | :12A |
| Contact Voltage AC Nom | :250V |
| 额定电流 | :12A |
| DC Coil Power | :400mW |
| Dielectric Voltage Coil to Contact | :5000V |
| Dielectric Voltage Contact to Contact | :1000V |
| 外部深度 | :12.7mm |
| 外部高度 | :15.7mm |
| External Length / Height | :15.7mm |
| 外宽 | :29mm |
| 引线间距 | :3.5mm |
| No. of Pins | :5 |
| No. of Poles | :1 |
| Nom Operating Power | :400mW |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Operating Time | :7ms |
| Row Pitch | :7.5mm |
| Voltage Rating V AC | :250VAC |
| Weight (kg) | 0.03 |
| Tariff No. | 85364900 |
