TE Connectivity

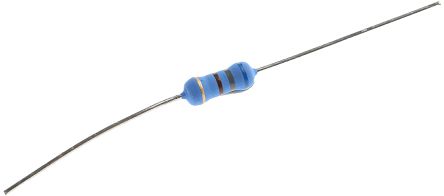

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 机箱样式 | Conformal |
| 直径 | 3mm |
| 外形尺寸 | 3 Dia. x 9mm |
| 长度 | 9mm |
| 最高工作温度 | +235°C |
| 最大温度系数 | +300ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | -300ppm/°C |
| 额定功率 | 1W |
| 电阻 | 680Ω |
| 技术 | Metal Oxide |
| 温度系数 | ±300ppm/°C |
| 端接类型 | Axial |
| 容差 | ±5% |
| 标准包装 | 2,000 |
| 产品范围 | :TE CONNECTIVITY - ROX Series |
| 电阻公差 | :± 5% |
| Resistor Case Style | :Axial Leaded |
| Resistor Element Material | :Metal Oxide |
| 额定电压 | :350V |
| External Length / Height | :3.5mm |
| 外宽 | :10mm |
| 引线直径 | :0.54mm |
| 引线长度 | :28mm |
| No. of Pins | :2 |
| Operating Temperature Max | :235°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +235°C |
| Overload Voltage | :600V |
| Resistor Mounting | :Through Hole |
| 系列 | :ROX |
| Weight (kg) | 0.0005 |
| Tariff No. | 85332100 |
| Brand/Series | ROXSeries |
| Material,Element | MetalOxide |
| Power,Rating | 1W |
| 端子 | Axial |
| TycoPartNumber | 3-1625886-3 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
