TE Connectivity / Axicom

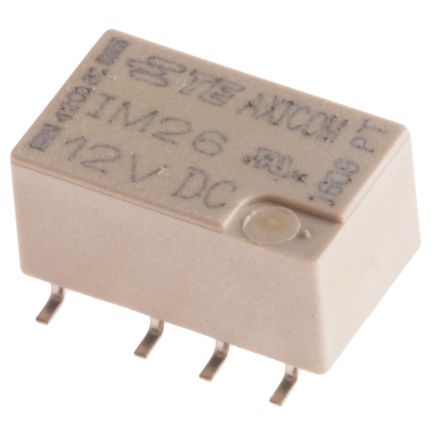

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | High Frequency / RF Relays |
| RoHS | RoHS Compliant |
| 触点形式 | 2 Form C (DPDT-BM) |
| 线圈电压 | 12 VDC |
| 线圈类型 | Monostable |
| 频率 | 900 MHz |
| 功耗 | 50 mW |
| 端接类型 | SMD/SMT, Gull Wing |
| 隔离 | - 18.8 dB |
| 插入损耗 | - 0.33 dB |
| 线圈电阻 | 2880 Ohms |
| 联系额定值 | 3 A at 30 VDC |
| 封装 | Reel |
| 系列 | IM Relay |
| 驻波比 | 1.49 at 900 MHz |
| 零件号别名 | 3-1462039-1 |
| 线圈电流 | 4.2mA |
| 开启电压（最大值） | 10.2 VDC |
| 产品特点 | Sealed - Hermetically |
| 关闭电压（最小值） | 1.2 VDC |
| 线圈功率 | 50 mW |
| 继电器类型 | Telecom |
| 切换电压 | 250VAC, 220VDC - Max |
| 释放时间 | 3ms |
| 工作温度 | -40°C ~ 85°C |
| 操作时间 | 3ms |
| 触点额定值（电流） | 2A |
| 标准包装 | 1,000 |
| 安装类型 | Surface Mount |
| 触点材料 | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | PB1166CT |
| 应用 | Signal |
| 联系配置 | DPDT |
| 深度 | 7.5mm |
| 身高 | 5.65mm |
| 长度 | 10mm |
| 最高工作温度 | +85°C |
| 最大开关电流DC | 2 A |
| 最大开关电源AC | 62.5 VA |
| 最大开关电源DC | 60 W |
| 最低工作温度 | -40°C |
| 终端类型 | Surface Mount |
| Contact Current Max | :2A |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :220V |
| Coil Voltage VDC Nom | :12V |
| Coil Power Cont | :50mW |
| Relay Mounting | :SMD |
| 外部高度 | :5.65mm |
| 外宽 | :6mm |
| 外部深度 | :10mm |
| Approval Bodies | :EN, IEC |
| Approval Category | :UL Recognised |
| Contact Current AC Max | :2A |
| Contact Current DC Max | :2A |
| 接触电阻 | :50mohm |
| DC Coil Power | :140mW |
| Dielectric Voltage Coil to Contact | :1800V |
| Dielectric Voltage Contact to Contact | :1000V |
| External Length / Height | :5.65mm |
| 绝缘电阻 | :1000Mohm |
| Insulation Resistance Voltage | :500VDC |
| MSL | :MSL 3 - 168 hours |
| No. of Pins | :8 |
| No. of Poles | :2 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Operating Voltage Range | :10.2V to 43.2V |
| Switch Power Max | :60W |
| Switching Power Max | :62.5VA |
| Switching Voltage AC / DC Max | :250VAC |
| Switching Voltage AC / DC Min | :100µV |
| Weight (kg) | 0.001 |
| Tariff No. | 85364900 |
