TE Connectivity / Axicom

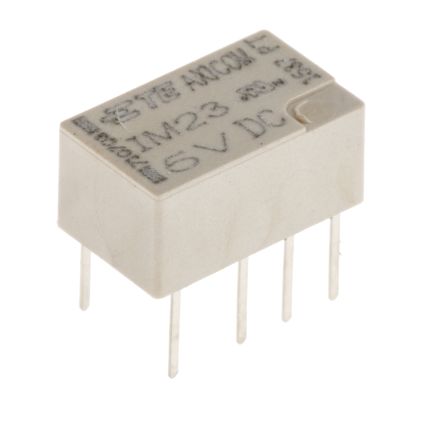

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | High Frequency / RF Relays |
| RoHS | RoHS Compliant |
| 触点形式 | 2 Form C (DPDT-BM) |
| 线圈电压 | 1.5 VDC to 24 VDC |
| 功耗 | 140 mW |
| 工厂包装数量 | 1000 |
| 零件号别名 | 3-1462039-0 |
| 线圈电流 | 10mA |
| 开启电压（最大值） | 4.25 VDC |
| 产品特点 | Sealed - Hermetically |
| 线圈类型 | Non Latching |
| 关闭电压（最小值） | 0.5 VDC |
| 线圈功率 | 50 mW |
| 继电器类型 | Telecom |
| 端接类型 | PC Pin |
| 切换电压 | 250VAC, 220VDC - Max |
| 释放时间 | 3ms |
| 封装 | Tube |
| 工作温度 | -40°C ~ 85°C |
| 操作时间 | 3ms |
| 触点额定值（电流） | 2A |
| 标准包装 | 1,000 |
| 安装类型 | Through Hole |
| 触点材料 | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| 线圈电阻 | 500 Ohms |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | Signal |
| 联系配置 | DPDT |
| 深度 | 6mm |
| 身高 | 5.65mm |
| 长度 | 10mm |
| 最高工作温度 | +85°C |
| 最大开关电流DC | 2 A |
| 最大开关电源AC | 62.5 VA |
| 最大开关电源DC | 60 W |
| 最低工作温度 | -40°C |
| 终端类型 | Through Hole |
| 最大开关电流 | 5 A |
| 插入损耗 | - 0.03 dB, - 0.33 dB |
| 触点额定电流 | 2 A |
| 隔离 | - 37 dB, - 18.8 dB |
| 驻波比 | 1.06, 1.49 |
| Contact Current Max | :2A |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :220V |
| Coil Voltage VDC Nom | :5V |
| Coil Power Cont | :50mW |
| Relay Mounting | :Through Hole |
| 外部高度 | :5.65mm |
| 外宽 | :6mm |
| 外部深度 | :10mm |
| MSL | :MSL 3 - 168 hours |
| Weight (kg) | 0.001 |
| Tariff No. | 85364900 |
| Relay series | IM |
| 外形尺寸 | see |
| 安装 | THT |
| Relay variant | subminiature, signal |
| 密封 | IP67 |
| Contact material | PdRu + Au |
| 接触电阻 | 50mΩ |
| Switching capacity | 60W, 62.5VA |
| Coil voltage min | 4.25V DC |
| Mechanical durability | 100000000cycles |
| Relay type | electromagnetic |
| Coil voltage max | 18V DC |
| Operating temperature | -40...85°C |
| AC contacts rating (at resistance load) | 0.5 A / 125 VAC |
| Switched voltage | max 220V DC, max 250V AC |
| 线圈电阻 | 500Ω |
| Body dimensions | 10 x 8.85 x 6mm |
| Multiplicity | 1 |
| Contacts configuration | DPDT |
| Gross weight | 1.22 g |
| Rated coil voltage | 5V DC |
| Output configuration | see |
| Contact current max | 2A |
| Coil power consumption | 50mW |
| Operate time | 1ms |
| Contacts pitch | 2.2mm |
| DC contacts rating (at resistance load) | 2 A / 30 VDC |
