TE Connectivity

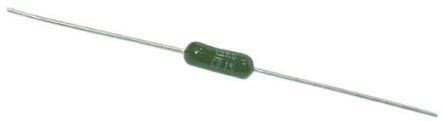

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 零件号别名 | 8-1879664-7 |
| 机箱样式 | Conformal |
| 直径 | 2.5mm |
| 外形尺寸 | 2.5 Dia. x 7.2mm |
| 引线直径 | 0.6mm |
| 长度 | 7.2mm |
| 最高工作温度 | +155°C |
| 最大温度系数 | +15ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | -15ppm/°C |
| 额定功率 | 0.25W |
| 电阻 | 9.09kΩ |
| 技术 | Metal Film |
| 温度系数 | ±15ppm/°C |
| 端接类型 | Axial |
| 容差 | ±0.1% |
| RoHS指令 | Compliant |
| 产品范围 | :TE CONNECTIVITY - H8 Series |
| 电阻公差 | :± 0.1% |
| Resistor Case Style | :Axial Leaded |
| Resistor Element Material | :Metal Film |
| 额定电压 | :350V |
| 主体直径 | :2.5mm |
| 机身长度 | :7.2mm |
| 引线长度 | :30mm |
| No. of Pins | :2 |
| Operating Temperature Max | :155°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +155°C |
| Resistor Mounting | :Through Hole |
| 系列 | :HOLCO |
| Weight (kg) | 0.0003 |
| Tariff No. | 85332100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
