TE Connectivity / AMP

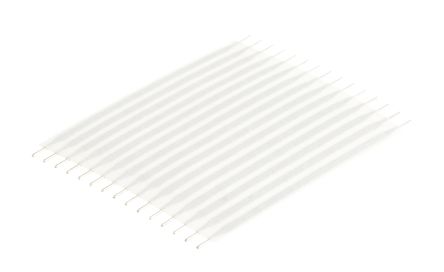

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| No. of Conductors | :15 |
| 节距 | :2.54mm |
| 护套材质 | :Nomex |
| Jacket Colour | :Grey |
| 额定电压 | :300V |
| Approval Bodies | :UL |
| 电缆类型 | :Flat (Ribbon) |
| 颜色 | :Grey |
| Conductor Make-up | :1/24AWG |
| 额定电流 | :3A |
| 外宽 | :36.8mm |
| 阻抗 | :107ohm |
| No. of Max Strands x Strand Size | :1 x 0.511mm |
| Operating Temperature Max | :+125°C |
| PCB孔直径 | :1mm |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| Brand/Series | FLEXSTRIP |
| Material,Body | Nomex |
| NumberofCircuits | 15 |
| PinSpacing | 2.54mm |
| 类型 | Ribbon |
| UsedWith | FLEXSTRIPSockets |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
