TE Connectivity / Alcoswitch

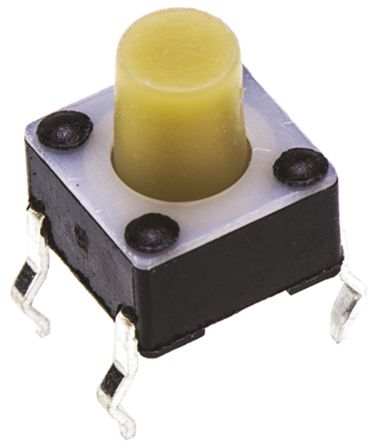

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外形 | 6.00mm x 6.00mm |
| 操作力 | 160gf |
| 执行器类型 | Standard |
| 安装类型 | Through Hole |
| 标准包装 | 750 |
| 开关功能 | Off-Mom |
| 端接类型 | PC Pin |
| 封装 | Bulk |
| 工作温度 | -35°C ~ 85°C |
| 致动器方向 | Top Actuated |
| 开关行程 | 0.25mm |
| 电路 | SPST-NO |
| 致动器距离PCB的高度，从引脚 | 7.30mm |
| 照明 | Non-Illuminated |
| 机械寿命 | 100,000 Cycles |
| 执行器材质 | Polyamide (PA66), Nylon 6/6 |
| 触点额定电压 | 0.05A @ 12VDC |
| 执行器颜色 | White |
| 促动器长度 | 3.7mm |
| 联系配置 | SPST |
| 触点额定电流 | 50 mA @ 24 V dc |
| 触点材料 | Silver Over Nickel Plated Copper Alloy (Stationary); Silver Plated Copper Alloy (Movable) |
| 最高工作温度 | +85°C |
| 最低工作温度 | -35°C |
| 开关操作 | Off-Momentary |
| 终端类型 | Through Hole |
| RoHS指令 | Compliant |
| 工厂包装数量 | 750 |
| 额定电流 | 50 mA |
| 接地端子 | No |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 安装风格 | Through Hole |
| 产品种类 | Tactile Switches |
| 触点电镀 | Silver |
| 执行器 | Round |
| 安装方向 | Vertical |
| 零件号别名 | 1-1825910-8 |
| Contact Voltage DC Nom | :24V |
| Contact Current Max | :50mA |
| 驱动类型 | :Top |
| Switch Terminals | :Solder |
| Actuator / Cap Colour | :Ivory |
| 接触电阻最大 | :100mohm |
| Dielectric Strength VAC | :500VAC |
| Insulation Resistance Voltage | :100VDC |
| No. of Mechanical Operations | :100000 |
| Weight (kg) | 0.025 |
| Tariff No. | 85365007 |
| ActuatorType | ButtonPlate |
| ContactForm | SPST |
| Current,Rating | 50mA |
| MountingHoleSize | 0.039In. |
| MountingType | PCB |
| 操作 | Off(On) |
| 端子 | PCBPins |
| 类型 | Tactile |
| Voltage,Rating | 24VDC |
