TE Connectivity

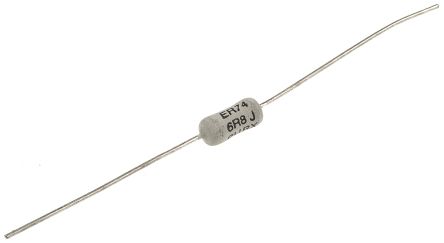

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 机箱样式 | Conformal |
| 直径 | 6mm |
| 外形尺寸 | 6 Dia. x 13.5mm |
| 长度 | 13.5mm |
| 最高工作温度 | +200°C |
| 最大温度系数 | +60ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | 0ppm/°C |
| 额定功率 | 3W |
| 电阻 | 6.8Ω |
| 技术 | Wire Wound |
| 温度系数 | 0 → +60ppm/°C |
| 端接类型 | Axial |
| 容差 | ±5% |
| 表壳直径 | 6 mm |
| 产品 | Power Resistors Wirewound Silicone Coated |
| 引线直径 | 0.8 mm |
| 额定电压 | 200 V |
| 系列 | ER |
| 工作温度范围 | - 55 C to + 200 C |
| 表壳长度 | 13.5 mm |
| 类型 | Axial Lead Wirewound Resistor |
| 零件号别名 | 4-1623746-9 |
| RoHS | RoHS Compliant |
| 产品范围 | :TE CONNECTIVITY - ER Series |
| 电阻公差 | :± 5% |
| Resistor Case Style | :Axial Leaded |
| Resistor Element Material | :Wirewound |
| 主体直径 | :6mm |
| 机身长度 | :13.5mm |
| 引线长度 | :38mm |
| No. of Pins | :2 |
| Operating Temperature Max | :200°C |
| Operating Temperature Min | :-55°C |
| Resistor Mounting | :Through Hole |
| Weight (kg) | 0.001 |
| Tariff No. | 85332100 |
| Brand/Series | ERSeries |
| Material,Element | Wirewound |
| PackageType | SiliconeCoat |
| Power,Rating | 2.5W |
| 端子 | Axial |
| TycoPartNumber | 4-1623746-9 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
