te connectivity / raychem wire

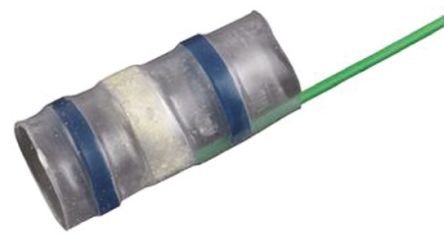

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Solder Sleeve Shield Terminator |
| 标准包装 | Bulk |
| RoHS | No |
| 封装 | Bulk |
| 零件号别名 | 416947-000 |
| 颜色 | Transparent |
| 材质 | Polyolefin |
| 最大电缆直径 | 6.7mm |
| 袖长 | 32mm |
| RoHS指令 | Non Compliant |
| Brand/Series | CWTSeries |
| 颜色 | TransparentClear |
| Diameter,Outer,Cable | 6.70(0.264)mm(In.) |
| Diameter,Shield | 3.30(0.130)mm(In.) |
| 长度 | 32.00(1.260)mm(In.) |
| Material,Sleeve | Polyolefin |
| PrimaryType | SolderSleeve |
| 最大电缆直径 | 6.7mm |
| 套管长度 | 32mm |
| 颜色 | 透明 |
| 材料 | 聚烯烃 |
| Lead Stranding | Stranded (W1) |
| Wire Temperature (Max) (°C) | 105 |
| Pre-Installed Lead | Yes |
| Resistance Properties | Splash Protection |
| Temperature Indicator Type | Thermochromic |
| 工作温度（最大值） (°C) | 125 |
| 总长 | 32 mm [ 1.26 in ] |
| Lead Color | White |
| Lead Plating Material | Tin |
| Pre-Installed Lead Wire Size (mm²) | .38 |
| 符合政府资质 | 否 |
| 扩大内径（最小值） | 6 mm [ .236 in ] |
| 屏蔽外径（最小值） | 3.3 mm [ .13 in ] |
| 产品类型 | 屏蔽终结器 |
| Jacket Outside Diameter | 6 mm [ .236 in ] |
| Temperature Indicator | Yes |
| Pre-Installed Lead Type | XL Polyethylene |
