TE Connectivity / Alcoswitch

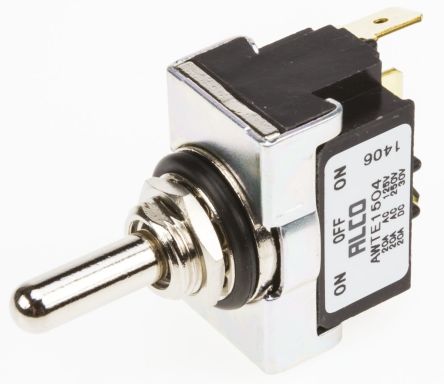

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 联系配置 | SPDT |
| 触点额定电流 | 20 A |
| 触点材料 | Brass Silver Alloy |
| IP等级 | IP67 |
| 最高工作温度 | +70°C |
| 最低工作温度 | -20°C |
| 终端类型 | Tab |
| 促动器长度 | 17.5mm |
| 执行器材质 | Brass |
| 接触电阻 | 10mΩ |
| 机械寿命 | 40000Cycles |
| 安装类型 | Panel Mount |
| 开关操作 | On-Off-On |
| RoHS指令 | Compliant |
| 端子密封 | Sealed |
| 触点形式 | SPDT |
| 开关功能 | ON - OFF - ON |
| 端接类型 | Quick Connect Terminal |
| 衬套尺寸 | M12 |
| 安装风格 | Panel |
| 触点电镀 | Silver Alloy |
| 执行器 | Bat |
| 零件号别名 | 7-6437630-1 |
| RoHS | RoHS Compliant |
| 标准包装 | 100 |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :30V |
| Contact Current Max | :20A |
| Switch Terminals | :Quick Connect, Solder |
| 执行器风格 | :Lever |
| Switch Mounting | :Panel |
| 驱动类型 | :Lever |
| Bush Thread Length | :8.5mm |
| Contact Current @ Contact Voltage AC Max | :20A |
| Contact Current AC Max | :20A |
| Contact Current DC Max | :20A |
| Contact Voltage AC Max | :250V |
| 外部深度 | :16mm |
| External Length / Height | :49.3mm |
| 外宽 | :33mm |
| 可燃性等级 | :94V-0 |
| 身高 | :22.9mm |
| IP / NEMA Rating | :IP67 |
| Lever Length | :17.5mm |
| No. of Poles | :1 |
| 面板开孔直径 | :12.5mm |
| 系列 | :A |
| Single Flat Panel Cut-out Diameter | :11.5mm |
| Tab Blade Thickness | :0.8mm |
| 螺纹尺寸 | :M12 |
| Weight (kg) | 0.08 |
| Tariff No. | 85364900 |
| ActuatorType | Bat |
| ContactForm | SPDT |
| 操作 | OnOffOn |
| 类型 | Toggle |
