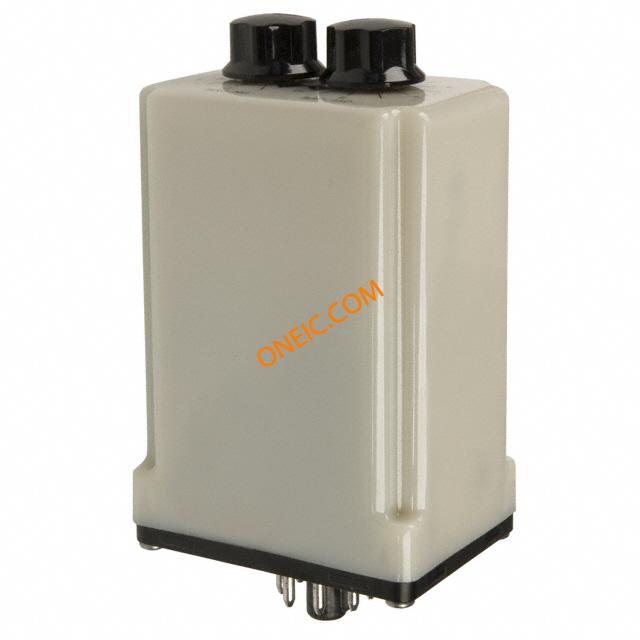

图片仅供参考,产品以实物为准
| 规格书 |
 CR Series 3D PDF CR Recycle Time Delay Relay Definitions Relays |
| 标准包装 | 1 |
| Relay 型 | Integrated |
| 功能的 | Repeat Cycle, Twin Timer |
| 线路 | DPDT (2 形式 C) |
| 延迟时间 | 0.1 Sec ~ 10 Sec |
| 输出功率 型 | Mechanical Relay |
| Contact Rating @ 电压 | 10A @ 277VAC |
| - 电源电压 | 120VAC |
| 安装类型 | Socket |
| 终止 风格 | 8 Pin Socketable |
| 定时 Adjustment Method | Hand Dial |
| 定时 Initiate Method | 输入 电压 |
| 工业别名 | 9-1393137-9, CRB-48-70010 |
| 子类别 | Electromechanical Relay |
| 交货期 | 84 Days |
| 功能 | Repeat Cycle, Twin Timer |
| 定时调节方法 | Hand Dial |
| 安装类型 | Socket |
| 继电器类型 | Integrated |
| 端接类型 | 8 Pin Socketable |
| 输出类型 | Mechanical Relay |
| 计时启动方法 | Input Voltage |
| 延迟时间 | 0.1 Sec ~ 10 Sec |
| 电路 | DPDT (2 Form C) |
| 标准包装 | 1 |
| 电压 - 电源 | 120VAC |
| 触点额定电压 | 10A @ 277VAC |
| RoHS指令 | Contains lead / RoHS non-compliant |
| 产品种类 | Time Delay & Timing Relays |
| 联系额定值 | 10 A at 30 VDC, 277 VAC |
| 触点形式 | 2 Form C (DPDT-BM) |
| 操作模式 | Recycle Timer |
| 定时范围 | 0.1 s to 10 s |
| 电源电压 | 120 VAC |
| 零件号别名 | 9-1393137-9 |
| RoHS | No |
| 联系配置 | :DPDT |
| Nom Input Voltage | :120VAC |
| Time Min | :0.1s |
| Time Max | :10s |
| Timing Adjustment | :Knob |
| Relay Mounting | :Quick Connect |
| Carry Current | :10A |
| Contact Carrying Power | :3VA |
| Weight (kg) | 0.186 |
| Tariff No. | 00000000 |
| associated | 27E891 27E122 |
