te connectivity / amp

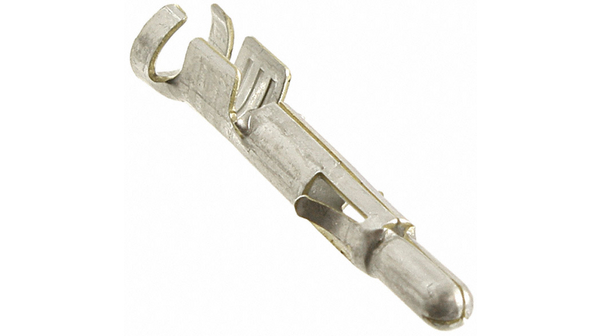

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector Headers and PCB Receptacles |
| 触点类型 | Signal |
| 触点材料 | Brass |
| 性别 | PIN |
| 端接方式 | Crimp |
| 标准包装 | Tape & Reel |
| 线规 | 14-20 AWG |
| 触点表面涂层 | Tin |
| 封装 | Tape & Reel (TR) |
| 针脚或插座 | Pin |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | A107140CT |
| CAD绘图 | 3D CAD Model |
| 线径规格 | 20 → 14 AWG |
| 工厂包装数量 | 5000 |
| 产品种类 | Power to the Board |
| 额定电流 | 19 A |
| 额定电压 | 600 V |
| 端接类型 | Solder Tail |
| 联系人性别 | Pin (Male) |
| 线规范围 | 20 to 14 |
| 触点电镀 | Pre Tin |
| 产品类型 | Contacts |
| RoHS | RoHS Compliant |
| 系列 | :Universal Mate-N-Lok |
| 适用于 | :Universal MATE-N-LOK Connectors |
| Wire Size AWG Min | :20AWG |
| Wire Size AWG Max | :14AWG |
| Cable Diameter Max | :3.3mm |
| Cable Diameter Min | :1.5mm |
| 触点尺寸 | :14 |
| Insulation Diameter Max | :3.3mm |
| Insulation Diameter Min | :1.5mm |
| 材质 | :Brass |
| 包装数量 | :1 |
| Voltage Rating V AC | :600V |
| Wire Area Size Max | :2.1mm² |
| Wire Area Size Min | :0.5mm² |
| Wire Size (AWG) | :20AWG to 14AWG |
| Weight (kg) | 0.034 |
| Tariff No. | 85369010 |
| ForUseWith | AutomotiveConnector |
| Material,Contact | Brass |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | -20°C |
| Temperature,Operating,Range | -20to+105°C |
| 端子 | Crimp |
| Electrical mounting | crimped |
| 连接器 | contact |
| 额定电流 | 19A |
| Multiplicity | 20000 |
| Connector type | male |
| spg | 5000 |
| Gross weight | 1 g |
| Package type | tape |
| 接触镀层 | tinned |
| Connector series | Universal MATE-N-LOK |
| Contacts pitch | 6.35mm |
| Collective package [pcs] | 5000 |
| Wire cross section | 0.5...2mm2 |
| Contact material | brass |
