te connectivity / amp

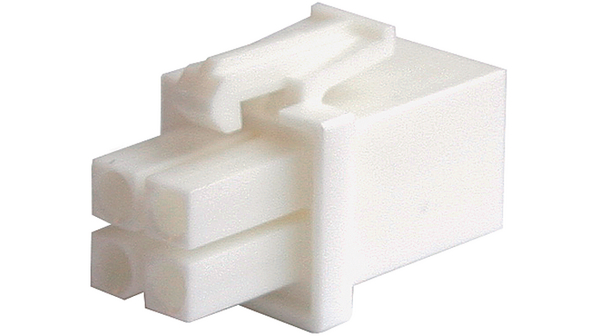

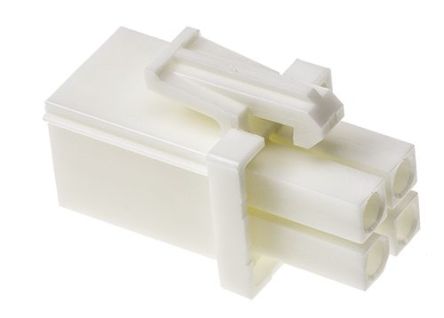

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 间距 | 4.14 mm |
| 触点数 | 4 |
| 行数 | 2 |
| 性别 | PL |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 封装 | Bulk |
| 安装类型 | Free Hanging (In-Line) |
| 颜色 | White |
| 连接器类型 | Plug |
| 位置数 | 4 |
| 注 | Contacts Not Provided |
| 紧固型 | Latch Lock |
| 触点类型 | Male or Female |
| 行间距 | 0.163" (4.14mm) |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 额定电流 | 9A |
| 外壳材料 | Nylon |
| 插头/插座 | Plug |
| 额定电压 | 600 V ac |
| 工厂包装数量 | 1 |
| 产品种类 | Pin & Socket Connectors |
| 系列 | Mate-N-Lok |
| 端接类型 | Crimp |
| 联系人性别 | Pin (Male) |
| 位置/触点数 | 4 |
| 安装风格 | Free Hanging |
| 产品类型 | Receptacle Housings |
| RoHS | RoHS Compliant |
| 额定电流（最大值） | 9/Contact A |
| 联系方式行数 | 2 |
| 外壳颜色 | White |
| 额定电压最大 | 600VAC |
| 间距（mm） | 4.14 mm |
| 产品长度（mm ） | 12.34 mm |
| 产品厚度（毫米） | 24.97 mm |
| 产品高度（mm ） | 15.21 mm |
| No. of Positions | :4 |
| 节距 | :4.14mm |
| 适用于 | :Mini-Universal MATE-N-LOK Connectors |
| Approval Bodies | :UL |
| 颜色 | :White |
| 绝缘电阻 | :1000Mohm |
| 材质 | :Nylon, UL94V-0 |
| No. of Rows | :2 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| Voltage Rating V AC | :600V |
| Voltage Rating V DC | :250V |
| Wire Size AWG Max | :10AWG |
| Wire Size AWG Min | :20AWG |
| 工作电压 | :250V |
| Weight (kg) | 0.001 |
| Tariff No. | 85369010 |
| 锁定系统 | lock |
| Mechanical mounting | for cable |
| Flammability rating | UL94V-0 |
| Connectors features | designed for any type of contacts |
| 额定电压 | 600V |
| Connector variant | sealed |
| Connector type | wire-wire |
| Type of pin configuration | 2x2 |
| 连接器 | plug |
| Gross weight | 1.5 g |
| Connector series | Mini Universal MATE-N-LOK Sealed |
| Multiplicity | 1 |
| 针数 | 4 |
| spg | 300 |
| Collective package [pcs] | 300 |
| Enclosure material | polyamide |
| Contacts pitch | 4.14mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
