te connectivity / amp

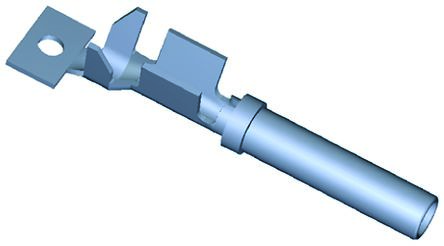

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector Power |
| 触点类型 | Signal |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold Over Nickel |
| 性别 | SKT |
| 端接方式 | Crimp |
| 标准包装 | Tape & Reel |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 电缆大小 - 详细 | 14 - 18 (GXL), 16 - 18 (SXL) |
| 包装方式 | Strip |
| 电镀 | Tin over Nickel |
| Insulation Diameter (mm in) | 2.26 â 3.32 [0.089 â 0.131] |
| 绝缘技术支持 | With |
| RoHSELV符合记录 | Always was RoHS compliant |
| 线规 | 14-18 AWG |
| 触点表面涂层 | Tin |
| 封装 | Tape & Reel (TR) |
| 针脚或插座 | Socket |
| Contact Finish Thickness | 100µin (2.54µm) |
| 类型 | Stamped |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | A104141CT |
| 额定电流 | 13A |
| 适用于 | AMPSEAL 16 Connector |
| 长度 | 21.59mm |
| 最高工作温度 | +125°C |
| 最低工作温度 | -40°C |
| 线径规格 | 18 → 14 AWG |
| 工厂包装数量 | 4000 |
| 产品 | Terminals |
| 产品种类 | Automotive Connectors |
| 安装方法 | Wire |
| 安装风格 | Wire |
| 间距 | 4.14 mm |
| 位置数 | 18 |
| RoHS | RoHS Compliant |
| 系列 | :AMPSEAL 16 |
| 联系人性别 | :Socket |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| Wire Size AWG Min | :18AWG |
| Wire Size AWG Max | :14AWG |
| Brand/Series | AMPSEAL16 |
| ContactPlating | Nickel |
| Current,Rating | 13Amps(Max.) |
| Material,Contact | CopperAlloy |
| PrimaryType | Contact |
| SpecialFeatures | DualBeam |
| TemperatureRange | –40°Cto+120°C |
| UsedWith | AMPSEAL16Connectors |
| WireGauge,AWG | 18-14 |
