te connectivity / amp

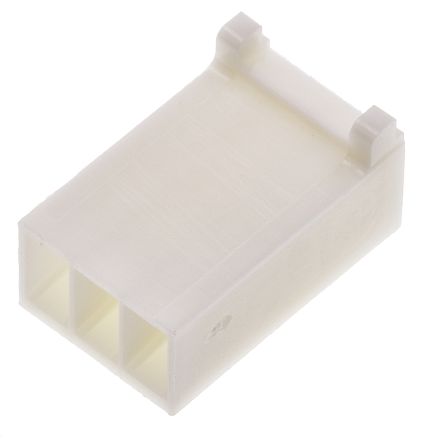

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 间距 | 2.54 mm |
| 触点数 | 3 |
| 行数 | 1 |
| 性别 | RCP |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 评论 | Accepts Contact Part No. 770601-1. |
| 联系中心线间距（毫米） | 2.54 [0.100] |
| Lead Free Solder Processes | Not relevant for lead free process |
| 交配型 | Receptacle |
| 安装耳 | Without |
| 品牌 | AMP |
| 有罩 | No |
| 面板附件 | Without |
| 包装数量 | 500 |
| 位置数 | 3 |
| 外壳材料 | Nylon |
| 接线方式 | Crimp |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Cable Exit Angle | 180° |
| 外壳颜色 | White |
| 四点式端子 | Without |
| 配合锁扣 | With |
| 壳体防火等级 | UL 94V-0 |
| 产品类型 | CST-100 Housings |
| RoHSELV符合记录 | Always was RoHS compliant |
| 交配极化 | Without |
| 封装 | Bulk |
| 安装类型 | Free Hanging (In-Line) |
| 颜色 | Natural |
| 连接器类型 | Receptacle |
| 注 | Contacts Not Provided |
| 紧固型 | Locking Ramp |
| 触点类型 | Female Socket |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 深度 | 12.95mm |
| 长度 | 8.13mm |
| 系列 | CST-100 |
| 宽度 | 6.6mm |
| 工厂包装数量 | 500 |
| 安装方式 | Straight |
| 产品种类 | Headers & Wire Housings |
| 端接类型 | Crimp |
| 联系人性别 | Socket (Female) |
| 安装风格 | Free Hanging |
| 应用 | Wire-to-Board |
| 位置/触点数 | 3 |
| 可燃性等级 | UL 94 V-0 |
| 闭锁类型 | Unlatched |
| RoHS | RoHS Compliant |
| 触点材料 | Phosphor Bronze |
| 工作温度范围 | -55C to 105C |
| 额定电流（最大值） | 5/Contact A |
| 联系方式行数 | 1 |
| 产品长度（mm ） | 8.13 mm |
| 产品厚度（毫米） | 12.95 mm |
| 产品高度（mm ） | 6.6 mm |
| 额定电压最大 | 250VAC |
| 间距（mm） | 2.54 mm |
| 产品范围 | :TE - CST-100 Series |
| No. of Contacts | :3 |
| No. of Rows | :1 |
| 节距 | :2.54mm |
| 触点电镀 | :- |
| Connector Mounting Orientation | :PCB |
| 绝缘电阻 | :1000Mohm |
| 材质 | :Natural, Nylon UL94V-0 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| 端接方式 | :Crimp |
| Weight (kg) | 0.028 |
| Tariff No. | 85369010 |
| AgencyApprovals | CSA,UL |
| Angle | Straight° |
| Brand/Series | CST-100Series |
| 中心线 | 0.1 |
| Color,Housing | White |
| FlammabilityRating | UL94V-0 |
| Length,Overall | 0.32" |
| Material,Housing | Nylon |
| MatingType | Receptacle |
| NumberofContacts | 3 |
| NumberofPositions | 3 |
| NumberofRows | 1 |
| PinSpacing | 0.1" |
| PrimaryType | InterconnectSystem |
| 标准 | RoHSCompliant,ELVCompliant |
| Temperature,Operating | -55to+105°C |
| 端子 | Crimp |
| WireTerminationType | Crimp |
| Mechanical mounting | for cable |
| Flammability rating | UL94V-0 |
| 连接器 | plug |
| Multiplicity | 1 |
| Type of pin configuration | 1x3 |
| Connector type | female |
| Gross weight | 0.37 g |
| 针数 | 3 |
| 额定电压 | 250V AC |
| Connector series | CST-100 |
| Contacts pitch | 2.54mm |
| Collective package [pcs] | 1 |
| spg | 1 |
