图片仅供参考,产品以实物为准
| 规格书 |
 749196 INDIVIDUAL KIT, UNASSEMBLED, 80 POSITION, STRAIGHT EXIT, UNKEYED, AMPLIMITE 050 Series 3D PDF AMPLIMITE Subminiature D Connectors - 050 Series Connector AMPLIMITE 050 Series Cable End Insulation Displacement Connector (IDC) and Printed Circuit (PC) Board Connector Manual Arbor Frame Assembly 58024-1 Cover Closing Kits 543508-1 and 543526-1 and Staple Inserter Kit 543515-1 for AMPLIMITE 050 Series Connector Assembly Installation and Use of Mass Termination Tooling Tooling Kit 768900-1 Manual Miniature Applicator Frame Assembly 91295-1 Seating Tool Assemblies 856371-[ ] for AMPLIMITE Series 050 Printed Circuit (PC) Board Receptacles Cover Lacing Fixture 91293-1 for AMPLIMITE 050 Series Connectors and AMPMODU 50/50 Grid Connectors Adapter Kits for GREENERD Manual Frame Assemblies 3A and 3B Repair Tool 58430-1 for AMPLIMITE 050 Series Connectors AMPLIMITE 050 Series Connectors (Round-to-Flat Cable) AMPLIMITE D-SUBMINIATURE CONNECTORS REPORT |
| 文档 |
749196-2 Statement of Compliance RoHS 2 Statement |
| Rohs | Lead free / RoHS Compliant |
| RoHS信息 | 749196-2 Statement of Compliance |
| 标准包装 | 1 |
| 附件类型 | Two Piece Backshell |
| 位置数 | 80 |
| Cable 型 | Round |
| Cable Exit | 180° |
| 屏蔽 | Shielded |
| 材料 | Metal, Zinc |
| 电镀 | Nickel over Copper |
| Hardware | Assembly Hardware, Strain Relief |
| 特点 | Spring Lock |
| 颜色 | - |
| 类型 | Backshell Kit |
| 家庭 | 749196 |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Backshells |
| RoHS | RoHS Compliant |
| 电缆入口数 | 1 |
| 电缆进入角度 | Straight |
| 电缆直径 | 12.7 mm |
| 位置数 | 80 |
| 外壳电镀 | Nickel over Copper |
| 封装 | Bulk |
| 螺丝材质 | Stainless Steel |
| 外壳材质 | Zinc |
| 工厂包装数量 | 1 |

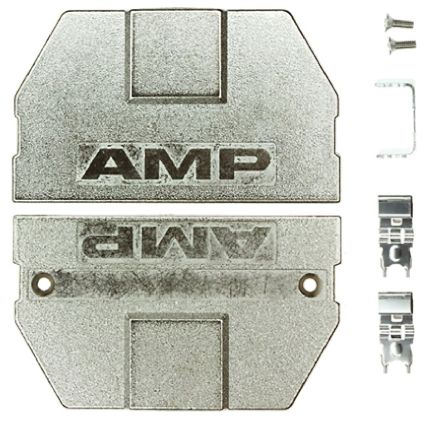

| 评论 | Each backshell kit includes upper and lower backshells, two spring latches, one |
| 闭锁弹簧材质 | Stainless Steel |
| Lead Free Solder Processes | Not relevant for lead free process |
| 产品类型 | Hardware |
| 后壳电镀 | Nickel over Copper |
| 产品系列 | Series III |
| 屏蔽 | Yes |
| 品牌 | AMP |
| 应力消除夹材质 | Steel |
| 要终止 | Wire |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| 配合锁扣 | With |
| 配合连接器锁扣类型 | Spring Latch |
| 后壳材质 | Zinc |
| RoHSELV符合记录 | Always was RoHS compliant |
| 硬件类型 | Backshell Kit |
| 电缆绝缘直径（毫米（ ） ） | 12.70 [0.500] |
| 子类别 | Backshells |
| 交货期 | 70 Days |
| 电镀 | Nickel over Copper |
| 电缆类型 | Round |
| 屏蔽 | Shielded |
| 产品特点 | Assembly Kit, Spring Lock |
| 颜色 | Silver |
| 材质 | Metal, Zinc |
| 附件类型 | Two Piece Backshell |
| 硬件 | Assembly Hardware, Strain Relief |
| 线缆出口 | 180° |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品长度（mm ） | 68.96 mm |
| 产品厚度（毫米） | 40.64 mm |
| 产品高度（mm ） | 14.35 mm |
| 适用于 | :.050 Series III Cable Connector |
| Connector Shell Size | :- |
| Cable Exit Angle | :180° |
| Connector Body Material | :Zinc |
| 连接器类型 | :D Sub |
| Weight (kg) | 0.086 |
| Tariff No. | 85369010 |
| usewith | 5749621-8 5749111-7 |
