te connectivity / amp

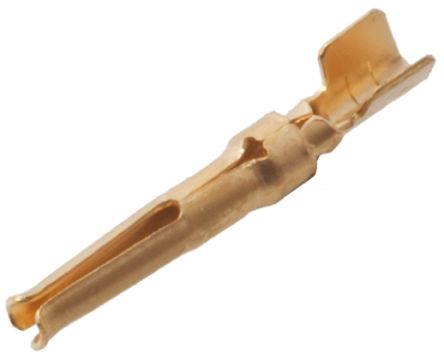

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector D-Subminiature |
| 触点类型 | Signal |
| 触点材料 | Phosphor Bronze |
| 性别 | SKT |
| 端接方式 | Crimp |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Contacts |
| RoHS | RoHS Compliant |
| 联系人性别 | Socket (Female) |
| 触点电镀 | Gold |
| 线规 | 22-18 |
| 端接类型 | Crimp |
| 触点尺寸 | 20DF |
| 封装 | Bulk |
| 系列 | HDP-20 |
| 工厂包装数量 | 1 |
| 评论 | Wire insulation diameter is limited by the connector housing cavity and clearan |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 产品系列 | HDP-20 (Crimp Snap) |
| 等级 | Standard |
| 端子尾部电镀 | Gold Flash over Nickel |
| 联系保留在外壳 | Crimp Snap-In |
| PinSocket | Socket |
| 包装方式 | Loose Piece |
| 接线方式 | Crimp |
| 线径规格（mm ²AWG ） | 0.4 - 0.8 [22-18] |
| 触点区域镀层材料 | Gold (30) |
| 绝缘技术支持 | No |
| 产品类型 | Contact |
| RoHSELV符合记录 | Always was RoHS compliant |
| 电镀 | Gold |
| 材质 | Phosphor Bronze |
| 电镀 - 厚度 | Flash |
| 针脚或插座 | Socket |
| 类型 | Stamped |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 长度 | 13.47mm |
| 弧度硬化 | No |
| 端口数 | 1 Port |
| 外壳材料 | Not Required |
| 安装风格 | Cable |
| 身体上的取向 | Straight |
| 联系方式行数 | Not Required |
| 触点数 | 1 POS |
| 插头/插座 | SKT |
| 产品厚度（毫米） | 2.29 mm |
| 端子数 | 1 |
| 联系间距（mm） | Not Required mm |
| 适用于 | :D Sub Connectors |
| Wire Size AWG Min | :22AWG |
| Wire Size AWG Max | :18AWG |
| Weight (kg) | 0.002 |
| Tariff No. | 85366910 |
| Angle | Straight |
| AWG | 22-18 |
| Brand/Series | AMPLIMITEHDP-20 |
| ContactSize | 20 |
| Diameter,Insulation | 0.068In. |
| ForUseWith | HDP-20Conn. |
| Material,Contact | PhosphorBronze |
| Material,ContactPlating | Gold(30)μoverNickel |
| PrimaryType | Contact |
| 端子 | Crimp |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
