te connectivity / p&b

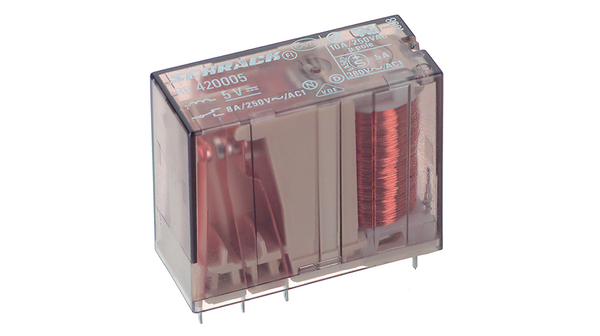

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 标准包装 | Rail / Tube |
| 产品种类 | General Purpose Relays |
| 线圈电流 | 44.4 mA |
| 线圈类型 | Non-Latching |
| 切换电压 | 400 VAC |
| 触点额定电流 | 14 A |
| 触点形式 | DPST-NO |
| 线圈电压 | 12 V |
| 线圈电阻 | 270 Ohms |
| 身高 | 25.5 mm |
| 安装风格 | Through Hole |
| 宽度 | 12.6 mm |
| 长度 | 29 mm |
| 类型 | PCB Power Relay |
| 接触端子 | PCB |
| 触点材料 | Silver Cadmium Oxide |
| 操作功能 | Single Side Stable |
| Approx Dimensions (L x W x H) (mm [in]) | 29.00 x 12.60 x 25.40 [1.142 x .496 x 1.000] |
| 线圈抑制二极管 | Without |
| 安装 | PC Board |
| 符合RoHS / ELV符合记录 | Always was RoHS not ELV compliant |
| 电流 | 8 Amps |
| Coil Resistance (ohm) | 270 |
| 极化 | No |
| 驱动系统 | DC |
| Lead Free Solder Processes | Wave solder capable to 240C, Wave solder capable to 260C, Wave solder capable to 265C |
| FCC Part 68 Isolation | n/a |
| MainCategory | Relays |
| Wiring Diagram | 2 Form A |
| Coil Rating | n/a |
| SubCategory | General Purpose Relay |
| 符合RoHS / ELV标准 | RoHS/Not ELV Compliant |
| 联系配置 | 2A DPST-NO |
| Coil Magnetic System | Monostable |
| Coil Insulation Classification | n/a |
| 评论 | n/a |
| 批准标准 | UL Recognized, CSA Certified, SEV Approved, VDE Component Mark |
| Coil Power, Nominal | 500 mW |
| 端接类型 | Printed Circuit Terminals |
| LED指示灯 | Without |
| 外壳 | Flux-Tight |
| Dimensions L x W x H | 29 x 12.6 x 25.5 mm |
| Ucoil | 12 |
| Rcoil | 270 |
| Switching voltage | 250 |
| 联系方式 | 2 make contacts (NO) |
| Pcoil | 500 |
| Switching current | 8 A |
| Manufacturer Article n° | RP440012 |
| Relay type | Monostable |
| Switching capacity | 2000 VA |
| 测试电压 | 4 |
| 间距 | 5 |
| Temperature range | -40...+70 °C |
| Protection rating | IP 42 |
| Contact material | AgCdO |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
