TE Connectivity / Corcom

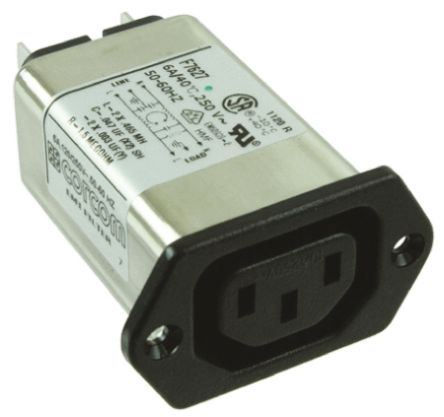

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | 6609018-5, 6EBF1 |
| 子类别 | Power Line Filter |
| 交货期 | 20 Days |
| 安装类型 | Panel Mount, Screw Hole |
| 端接类型 | Quick Connect |
| 电流 | 6A |
| 保险丝盒 | Fuse Not Required |
| 电压 | 250VAC |
| 标准包装 | 24 |
| 滤波器类型 | General Purpose |
| 类型 | IEC 320-C14 (Male Pins) |
| RoHS指令 | Lead free / RoHS Compliant |
| 附件类型 | Filter |
| 额定电流 | 6 A |
| 深度 | 25.4mm |
| 电气阶段 | 1 |
| 长度 | 50.5mm |
| 电压范围 | 250 V ac |
| 宽度 | 65.3mm |
| 工厂包装数量 | 24 |
| 产品 | Outlets |
| 产品种类 | AC Power Entry Modules |
| 过滤 | Yes |
| 额定电压 | 250 VAC |
| 系列 | EBF (1-10 A) |
| 开关功能 | Not Switched |
| 安装风格 | Flange |
| 封装 | Bulk |
| 融合 | No |
| 零件号别名 | 6609018-5 |
| RoHS | RoHS Compliant |
| Leakage Current Max | :350µA |
| 电容 | :0.047µF |
| Inductance Min | :465µH |
| Filter Terminals | :Quick Connect |
| Approval Bodies | :CSA, UL, VDE |
| 外部深度 | :65.3mm |
| External Length / Height | :25.4mm |
| 外宽 | :50.5mm |
| 泄漏电流 | :350µA |
| No. of Phases | :Single |
| Operating Temperature Max | :40°C |
| Operating Temperature Min | :-10°C |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.048 |
| Tariff No. | 85369010 |
| Brand/Series | Corcom/EBFSeries |
| Current,Leakage | 0.25/0.5mA |
| Current,Rating | 6A |
| CutOut,Panel | 35.6×25.7mm(FrontMount) |
| 外形尺寸 | 25.4mmH×65.3mmW×50.5mmL |
| FilterType | EMI/RFI |
| Frequency,Operating | 50/60Hz |
| HipotRating,LinetoGround | 2250VDC |
| HipotRating,LinetoLine | 1450VDC |
| MountingType | Flange |
| Options | CircuitBreaker,FeedthruCapacitor |
| 第一阶段 | 1 |
| PrimaryType | AC,GeneralPurpose |
| TycoPartNumber | 6609018-5 |
| Voltage,Operating | 250VAC |
| Voltage,Rating | 250VAC |
