te connectivity / amp

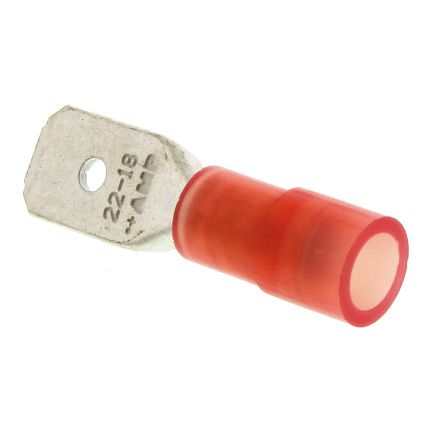

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Terminals |
| RoHS | RoHS Compliant |
| 产品 | Tab Terminals |
| 线规 | 22-18 |
| 梭哈/标签大小 | 0.25 in |
| 绝缘 | Insulated |
| 性别 | Male |
| 绝缘材料 | Nylon |
| 封装 | Bulk |
| 工厂包装数量 | 1000 |
| 绝缘技术支持 | With |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 表面处理 | Tin |
| 材质 | Brass |
| UL认证 | Recognized |
| 安装角度 | Straight |
| Wire Range (mm (AWG)) | 0.30-0.90² [22-18] |
| 绝缘直径（毫米（ ） ） | 2.03-3.05 [.080-.120] |
| 产品类型 | Tab |
| CSA认证 | Yes |
| 包装方式 | Loose Piece |
| 包装数量 | 1,000 |
| 选项卡类型 | Wire Crimp |
| 螺栓孔 | Without |
| 绝缘套管材料 | Nylon |
| WireCable类型 | Regular Wire |
| 评论 | UL File No. E66717; CSA File No. LR 7189 |
| 标签飞度（毫米（ ） ） | 6.35 x 0.81 [.250 x .032] |
| 颜色 | Red |
| RoHSELV符合记录 | Always was RoHS compliant |
| 专有名称 | PIDG FASTON |
| 连接类型 | Single |
| 片厚度 | 0.032" (0.81mm) |
| 片宽度 | 0.250" (6.35mm) |
| 安装类型 | Free Hanging (In-Line) |
| 终端类型 | Standard |
| 长度 - 总体 | 0.911" (23.14mm) |
| 触点表面涂层 | Tin |
| 绝缘直径 | 0.080" ~ 0.115" (2.03mm ~ 2.92mm) |
| 标准包装 | 1,000 |
| 端子 | Crimp |
| 触点材料 | Brass |
| 其他名称 | 6963621 |
| RoHS指令 | Lead free / RoHS Compliant |
| 颜色 | Red |
| 触点电镀 | Tin |
| 总长 | 0.911in |
| 系列 | 696362 |
| 有罩 | Unshrouded |
| 标签尺寸 | 6.35 x 0.81mm |
| 线径规格 | 22 → 18 AWG |
| 连接器类型 | :Male Disconnect |
| 绝缘体颜色 | :Red |
| 端接方式 | :Crimp |
| 梭哈/标签大小 | :6.35mm x 0.81mm |
| Wire Size AWG Min | :22AWG |
| Wire Size AWG Max | :18AWG |
| Weight (kg) | 0.002 |
| Tariff No. | 85444920 |
| Angle | Straight |
| Brand/Series | PIDGFASTON |
| ContactPlating | Tin |
| Diameter,Insulation | 0.080to0.120" |
| InsulationType | Nylon |
| Length,Overall | 0.866" |
| Material,Contact | Brass |
| MountAngle | Straight |
| PackageQuantity | 1000 |
| PrimaryType | QuickDisconnect |
| TabFit | 0.250x0.032 |
| Width,Overall | 0.25" |
| WireSize | 22-18AWG |
