te connectivity / amp

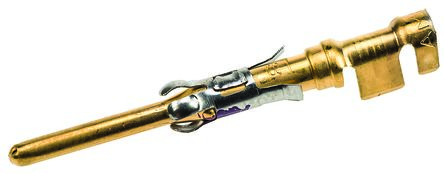

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector Circular |
| 触点类型 | Signal |
| 触点材料 | Brass |
| 触点电镀 | Gold Over Nickel |
| 性别 | PIN |
| 端接方式 | Crimp |
| 标准包装 | Bulk |
| 电镀 | Gold |
| 线规 | 14-18 AWG |
| 材质 | Brass |
| 封装 | Bulk |
| 电镀 - 厚度 | 15µin (0.38µm) |
| 针脚或插座 | Pin |
| 类型 | Stamped |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 触点尺寸 | 16 |
| 额定电流 | 13A |
| 适用于 | CPC Connector, G Series Connector, M Series Connector |
| 长度 | 27.1mm |
| 最高工作温度 | +125°C |
| 最低工作温度 | -55°C |
| 系列 | Type III+ |
| 额定电压 | 250 V ac |
| 线径规格 | 18 → 14 AWG |
| 工厂包装数量 | 1000 |
| 产品种类 | Pin & Socket Connectors |
| 端接类型 | Crimp |
| 联系人性别 | Pin (Male) |
| 线规范围 | 18-14 |
| 商品名 | Multimate |
| 产品类型 | Contacts |
| RoHS | RoHS Compliant |
| Wire Size AWG Min | :18AWG |
| Wire Size AWG Max | :14AWG |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| Brand/Series | AMP |
| ConnectorType | Pin |
| ContactMatingAreaPlating | Gold(15)overNickel(50) |
| ContactSize | 16 |
| ContactType | Signal |
| Current,Test | 13A |
| Diameter,Insulation | 0.080to0.100in. |
| Diameter,Pin | 0.062in. |
| ForUseWith | GSeriesConnectors,MSeriesConnectorsandCPCConnectors |
| 等级 | Commercial |
| Material,Contact | Brass |
| Material,Spring | StainlessSteel |
| 标准 | RoHSCompliant |
| 端子 | Crimp |
| WireRange | 18to14AWG |
| WireType | Discrete |
| Electrical mounting | crimped |
| 连接器 | contact |
| 接触镀层 | gold plated |
| 额定电流 | 13A |
| Multiplicity | 1 |
| Connector series | Type III+ |
| Connector type | male |
| Plating thickness | 0.38µm |
| spg | 1 |
| Gross weight | 0.46 g |
| Connectors application | CPC Series 1, CPC Series 4 |
| Cable external diameter | 2.03...2.54mm |
| Package type | in bulk |
| Wire size | 14...18AWG |
| Collective package [pcs] | 1 |
| Wire cross section | 0.8...2mm2 |
| Contact material | brass |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
