te connectivity / amp

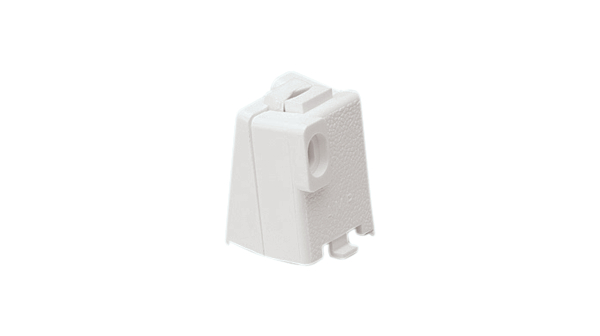

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Strain Relief |
| 家庭 | 640715 |
| 标准包装 | Bulk |

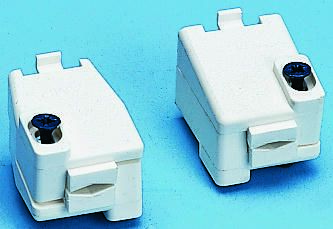

| 评论 | Strain relief part number represents one half of a strain relief. Two of a part |
| 联系方式布局 | Matrix |
| Lead Free Solder Processes | Not relevant for lead free process |
| 可燃性等级 | UL 94V-0 |
| 连接线 | Universal MATE-N-LOK II |
| 颜色 | White |
| 电路数 | 6 |
| 外壳材料 | Nylon |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| 插入提供 | Yes |
| 产品类型 | Strain Relief |
| RoHSELV符合记录 | Always was RoHS compliant |
| Wire Diameter Range (mm (in)) | 3.05 â 16.51 [0.120 â 0.650] |
| 附件类型 | Strain Relief |
| 配用/相关产品 | Universal MATE-N-LOK II Series |
| 位置数 | 6 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 1 |
| 产品种类 | Pin & Socket Connectors |
| 系列 | Universal Mate-N-Lok |
| 端接类型 | Screw |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 6 |
| 安装风格 | Panel |
| RoHS | RoHS Compliant |
| 产品长度（mm ） | 26.16 mm |
| 产品厚度（毫米） | 33.02 mm |
| 产品高度（mm ） | 14.73 mm |
| 适用于 | :Universal Mate-N-Lok II Connectors |
| No. of Positions | :6 |
| 应变救灾物资 | :Nylon (Polyamide) |
| Cable Diameter Max | :16.51mm |
| 颜色 | :White |
| External Length / Height | :33mm |
| 外宽 | :26mm |
| Fixing Style | :#6 x 16 mm Lg Type B Pan head sheet metal screw |
| 材质 | :Nylon |
| Weight (kg) | 0.001 |
| Tariff No. | 85369010 |
| Brand/Series | MATE-N-LOK |
| ConnectorLine | UniversalMATE-N-LOKII |
| ConnectorType | SoftShell |
| ContactLayout | Matrix |
| Material,Housing | Nylon |
| NumberofCircuits | 6 |
| PrimaryType | Interconnect |
| 标准 | RoHSCompliant,ELVCompliant |
| Multiplicity | 2 |
| Type of pin configuration | 2x3 |
| Gross weight | 5.01 g |
| Connector accessories type | cabel hood and fastener |
| Connector series | Universal MATE-N-LOK |
| Connector variant | without screws |
| 针数 | 6 |
| Contacts pitch | 6.35mm |
| Collective package [pcs] | 1 |
| Enclosure material | polyamide |
| spg | 1 |
