te connectivity / amp

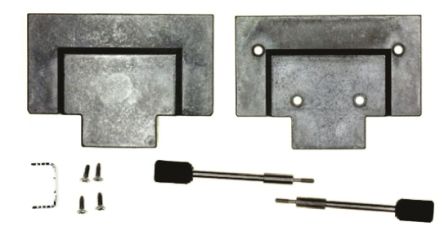

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Cover |
| 家庭 | 5786152 |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Backshells |
| RoHS | RoHS Compliant |
| 电缆入口数 | 1 |
| 电缆进入角度 | Straight |
| 电缆直径 | 13.97 mm |
| 位置数 | 68 |
| 外壳电镀 | Tin over Nickel |
| 性别 | Female |
| 封装 | Bulk |
| 外壳材质 | Zinc |
| 工厂包装数量 | 100 |
| 评论 | Each backshell kit includes upper and lower backshells, two jackscrews, one str |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 产品类型 | Hardware |
| 后壳电镀 | Tin over Nickel |
| 产品系列 | Series III |
| 螺旋千斤顶头材质 | PVC |
| 屏蔽 | Yes |
| 螺旋千斤顶材质 | Stainless Steel |
| 品牌 | Tyco Electronics |
| 包装方式 | Individual |
| 要终止 | Wire |
| 应力消除夹材质 | Carbon Steel |
| 螺丝材质 | Stainless Steel |
| 配合锁扣 | With |
| 配合连接器锁扣类型 | Male Jackscrew |
| 后壳材质 | Zinc |
| RoHSELV符合记录 | Always was RoHS compliant |
| 硬件类型 | Backshell Kit |
| 电缆绝缘直径（毫米（ ） ） | 13.97 [0.550] |
| 卖备选方案 | 786152-3 |
| 子类别 | Backshells |
| 交货期 | 70 Days |
| 电镀 | Nickel over Copper |
| 电缆类型 | Round |
| 屏蔽 | Shielded |
| 产品特点 | Assembly Kit, Mating Screws 2-56 |
| 颜色 | Silver |
| 材质 | Metal, Zinc |
| 附件类型 | Two Piece Backshell |
| 硬件 | Assembly Hardware, Strain Relief |
| 线缆出口 | 180° |
| 其他名称 | 57861523 |
| RoHS指令 | Lead free / RoHS Compliant |
| 身体上的取向 | Straight |
| 外壳材料 | Zinc |
| 触点数 | 68 |
| 系列 | Series III |
| 产品长度（mm ） | 64.14 mm |
| 产品高度（mm ） | 14.33 mm |
| 适用于 | :68 Position AMPLIMITE 0.050 Connectors |
| Connector Shell Size | :- |
| Cable Exit Angle | :180° |
| Connector Body Material | :Zinc |
| 连接器类型 | :D Sub |
| Weight (kg) | 1 |
| Tariff No. | 85369010 |
| Brand/Series | SeriesIII |
| CableExitAngle | Straight |
| Cable,Diameter | 0.550In. |
| Material,Backshell | Zinc |
| ShellSize | 68Positions |
| SpecialFeatures | EMI/RFIShield,Jackscrews |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
