te connectivity / amp

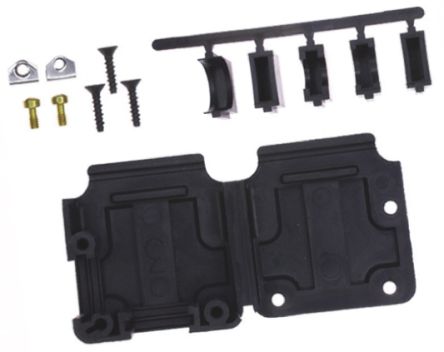

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Backshell/Cable Clamp |
| 家庭 | 5207908 |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Backshells |
| RoHS | RoHS Compliant |
| 电缆入口数 | 2 |
| 电缆进入角度 | Variable Entries |
| 外壳尺寸 | 3 |
| 外壳电镀 | Plastic |
| 封装 | Bulk |
| 外壳材质 | Thermoplastic |
| 工厂包装数量 | 1 |
| 欧盟RoHS指令 | Compliant |
| 角功能 | 90°|180° |
| 连接器类型 | Connector D-Subminiature |
| 评论 | Each kit is comprised of a cable clamp and male screw retainer hardware (2 each |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 电缆夹材料 | Thermoplastic |
| 产品系列 | HD-20 (Solder Cup) |
| 屏蔽 | No |
| 包装方式 | Individual Kit |
| 螺纹尺寸 | 4-40 |
| 固定夹材质 | Stainless Steel |
| Cable Exit Angle | Straight(180°)/90° |
| 垫圈 | Without |
| 屏蔽镀层 | None |
| 电缆夹类型 | Box and Lid |
| 产品类型 | Backshell/Cable Clamp |
| RoHSELV符合记录 | Always was RoHS compliant |
| Cable Insulation Diameter (mm in) | 9.91 [0.390] |
| 螺钉及固定夹 | With |
| 卖备选方案 | 207908-7207908-8 |
| 子类别 | Backshells |
| 交货期 | 28 Days |
| 电缆类型 | Round |
| 屏蔽 | Unshielded |
| 产品特点 | Assembly Kit, Mating Screws 4-40 |
| 颜色 | Black |
| 材质 | Polypropylene |
| 附件类型 | Hinged Backshell |
| 硬件 | Assembly Hardware, Strain Relief |
| 线缆出口 | 90°, 180° |
| 位置数 | 25 |
| RoHS指令 | Lead free / RoHS Compliant |
| 身体上的取向 | Right Angle, Straight |
| 外壳材料 | Thermoplastic |
| 触点数 | 25 |
| 系列 | HD-20 |
| D Sub Shell Size | :DB |
| Connector Body Material | :Thermoplastic |
| Connector Shell Size | :DB |
| 外壳材质 | :Plastic |
| Weight (kg) | 0.018 |
| Tariff No. | 39173200 |
| Brand/Series | HD-20Series |
| CableExitAngle | Straight/90Deg |
| Cable,Diameter | 0.390In. |
| Material,Backshell | Thermoplastic |
| ShellSize | 25Positions |
| SpecialFeatures | Screws/RetainerClips |
