te connectivity / amp

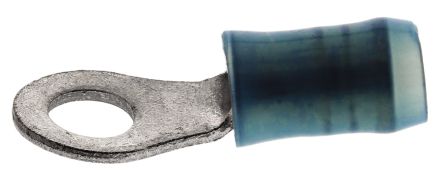

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Ring Tongue Terminal |
| 螺栓尺寸 | 4 mm |
| 线径规格 | 14-16 AWG |
| 标准包装 | Bulk |
| 产品种类 | Terminals |
| RoHS | RoHS Compliant |
| 产品 | Ring Terminals |
| 系列 | 518 |
| 线规 | 16-14 |
| 梭哈/标签大小 | 8 (M4) |
| 绝缘 | Insulated |
| 颜色 | Blue |
| 性别 | Female |
| 触点电镀 | Tin |
| 绝缘材料 | Nylon |
| 长度 | 21.44 mm |
| 材质 | Copper |
| 封装 | Bulk |
| 工厂包装数量 | 1000 |
| 额定电压 | 300 VAC |
| 零件号别名 | MS25036-153 |
| 线径规格 | 14-16 |
| 电镀 | Tin |
| 欧盟RoHS指令 | Compliant |
| 产品长度 | 21.44 |
| 产品厚度 | 7.92 |
| 阀体材质 | Copper |
| 螺栓尺寸 | 4 |
| 绝缘技术支持 | Insulation Support |
| 插座样式 | Straight |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| 舌片材料厚度（毫米） | 0.79 [0.031] |
| Lead Free Solder Processes | Not relevant for lead free process |
| 表面处理 | Tin |
| 品牌 | AMP |
| Wire Range (mm (AWG)) | 1.25-2.00² [16-14] |
| 绝缘直径（毫米（ ） ） | 2.67- 3.81 [.105-.150] |
| 体风格 | PIDG |
| 电压（VAC ） | 300 |
| 等级 | 1 & 2 |
| 长度（毫米） | 21.44 [0.844] |
| GovernmentIndustry产品编号 | MS25036-153 |
| 包装方式 | Loose Piece |
| 端子形状 | Ring Tongue |
| 绝缘套管材料 | Copper |
| WireCable类型 | Regular Wire |
| 重型 | No |
| GovernmentIndustry资格 | No |
| 形状 | RING-041 |
| 螺钉直径（毫米） | 4.34 [0.171] |
| RoHSELV符合记录 | Always was RoHS compliant |
| Wire Range (CMA) | 2,050 â 5,180 |
| 梭哈/标签大小 | 8 Stud |
| 长度 - 总体 | 0.844" (21.44mm) |
| 安装类型 | Free Hanging (In-Line) |
| 绝缘直径 | 0.105" ~ 0.150" (2.67mm ~ 3.81mm) |
| 宽度 - 外边 | 0.312" (7.92mm) |
| 厚度 | 0.031" (0.79mm) |
| 材料 - 绝缘体 | Polyamide (PA), Nylon |
| 端子 | Crimp |
| 触点表面涂层 | Tin |
| 终端类型 | Circular |
| 触点材料 | Copper |
| RoHS指令 | Lead free / RoHS Compliant |
| 颜色 | Blue |
| 总长 | 21.44mm |
| 连接器类型 | :Ring Tongue |
| Insulator Colour | :Blue |
| 端接方式 | :Crimp |
| Wire Size AWG Min | :16AWG |
| Wire Size AWG Max | :14AWG |
| 绝缘材料 | :Nylon (Polyamide) |
| 主体镀层 | :Tin |
| Cable Diameter Max | :3.81mm |
| Cable Diameter Min | :2.67mm |
| Voltage Rating V AC | :300V |
| Wire Area Size Max | :2mm² |
| Wire Area Size Min | :1.25mm² |
| Wire Size (AWG) | :16AWG to 14AWG |
| Wire Size Range (AWG) | :14 AWG |
| Weight (kg) | 0.001 |
| Tariff No. | 85369010 |
| Angle | Straight |
| Brand/Series | PIDG |
| ContactPlating | Tin |
| Diameter,Insulation | 0.150" |
| InsulationType | Nylon |
| Length,Overall | 0.844" |
| Material,Contact | Copper |
| PrimaryType | Ring |
| Size,Stud | 8 |
| Width,Overall | 0.312" |
| WireSize | 16-14AWG |
