TE Connectivity / Holsworthy

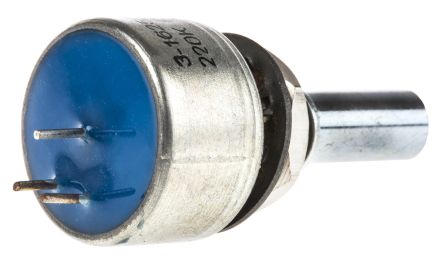

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 直径 | 19.03mm |
| 外形尺寸 | 19.03 Dia. x 43mm |
| 身高 | 43mm |
| 最大阻力 | 220kΩ |
| 安装类型 | Panel Mount |
| 圈数 | 1 |
| 额定功率 | 2W |
| 轴直径 | 6.34 mm |
| 端接类型 | Pin |
| 容差 | ±10% |
| 产品 | Potentiometer |
| 锥度 | Linear |
| 元素类型 | Cermet |
| 轴类型 | Round / Plain |
| 电阻 | 220 kOhms |
| 安装风格 | Panel |
| 轴长度 | 25.4 mm |
| 零件号别名 | 3-1625931-4 |
| RoHS | RoHS Compliant |
| Track Resistance | :220kohm |
| No. of Turns | :1 |
| 电阻公差 | :± 10% |
| 温度系数 | :0.75% |
| Potentiometer Mounting | :Panel |
| 主体直径 | :19mm |
| External Length / Height | :12.7mm |
| Full Power Rating Temperature | :70°C |
| 绝缘电阻 | :1000Mohm |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +125°C |
| Resistor Element Material | :Cermet |
| Resistor Mounting | :Panel |
| Rotation Mechanical Angle | :270° |
| 系列 | :MCU |
| Shaft Length - Metric | :25mm |
| Terminal Resistance | :3ohm |
| 螺纹尺寸 | :3/8" 32 UNEF |
| Tolerance + | :10% |
| Tolerance - | :10% |
| Track Taper | :Linear |
| 额定电压 | :315V |
| Voltage Rating V DC | :315V |
| Weight (kg) | 0.02023 |
| Tariff No. | 85334010 |
| Diameter,Shaft | 6.34mm |
| Material,Element | Cermet |
| MountingType | Panel |
| NumberofTurns | 1 |
| Power,Rating | 2W |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
