te connectivity / amp

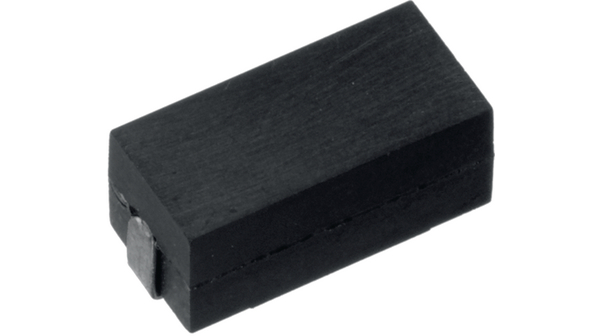

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Wirewound |
| 电阻值 | 8.2 Ohm |
| 容差 | 5 % |
| 额定功率 | 3 W |
| 机箱样式 | Molded |
| 温度系数 | ±200 ppm/°C |
| 标准包装 | Tape & Reel |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 安装方式 | Surface Mount |
| Temperature Coefficient (ppm°C) | ±200 |
| 系列 | SM |
| 品牌 | CGS |
| 额定功率（W ） | 3 |
| 元素 | Wirewound |
| 电阻类型 | Power Resistor |
| 电阻（Ω） | 8.2 |
| 包装类型 | Taped and Reeled |
| 端接类型 | Solder |
| 包装元件尺寸 | 5.5 x 10.5 |
| RoHSELV符合记录 | Always was RoHS compliant |
| 公差（ ％ ） | 5 |
| 封装 | Tape & Reel (TR) |
| 电阻（欧姆） | 8.2 |
| 端子数 | 2 |
| 供应商设备封装 | SMD |
| 身高 | 0.209" (5.30mm) |
| 尺寸/尺寸 | 0.413" L x 0.217" W (10.50mm x 5.50mm) |
| 功率（瓦特） | 3W |
| 成分 | Wirewound |
| 其他名称 | SMW38R2JT |
| 封装/外壳 | 4122 (10555 Metric), J-Lead |
| RoHS指令 | Lead free / RoHS Compliant |
| Dimensions L x W x H | 10.5 x 5.5 x 5 mm |
| Rated output | 3 W |
| Manufacturer Article n° | SMW38R2JT |
| 电阻 | 8.2 |
| Construction form | SMD |
| Temperature coefficient | ±200 ppm/°C |
| Temperature range | -55...+200 °C |
| Resistor type | Wire resistor |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
