te connectivity / amp

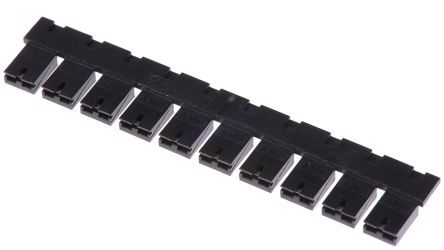

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Shunt |
| 触点数 | 2 |
| 行数 | 1 |
| 外壳颜色 | Black |
| 触点电镀 | Gold Over Nickel |
| 子类别 | Connector Jumpers and Shunts |
| 封装 | Stick |
| 交货期 | 28 Days |
| 颜色 | Black |
| 性别 | Female Sockets |
| 触点表面涂层 | Gold |
| 间距 | 0.100" (2.54mm) |
| 身高 | 0.250" (6.35mm) |
| 位置或引脚（网格）的数量 | 2 (1 x 2) |
| 标准包装 | 1,500 |
| Contact Finish Thickness | 5.11µin (0.13µm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 附件类型 | Shunt Connector |
| 适用于 | AMP Connectors |
| 工厂包装数量 | 1500 |
| 产品种类 | Headers & Wire Housings |
| 额定电流 | 3 A |
| 外壳材料 | Polyester |
| 系列 | AMPMODU |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 2 |
| 商品名 | AMPMODU |
| 产品类型 | Shunts |
| RoHS | RoHS Compliant |
| 触点材料 | Phosphor Bronze |
| 工作温度范围 | -65C to 105C |
| 额定电流（最大值） | 3/Contact A |
| 绝缘电阻 | 1000 Mohm |
| 身体上的取向 | Straight |
| 联系方式行数 | 1 |
| 产品长度（mm ） | 5.08 mm |
| 产品厚度（毫米） | 2.54 mm |
| 产品高度（mm ） | 6.35 mm |
| 间距（mm） | 2.54 mm |
| No. of Positions | :2 |
| 节距 | :2.54mm |
| 阀体材质 | :Polyester |
| Leaded Process Compatible | :Yes |
| Weight (kg) | 0.002 |
| Tariff No. | 85411000 |
| AgencyApprovals | CSA,UL |
| Angle | Straight |
| Brand/Series | AMPBrand |
| 中心线 | 0.100 |
| Color,Housing | Black |
| ContactMatingAreaPlating | GoldoverNickel |
| ContactPlating | GoldoverNickel |
| CurrentRating,Contact | 3 |
| Current,Rating | 3A |
| FlammabilityRating | UL94V-0 |
| Length,Overall | 2.498" |
| Material,Contact | PhosphorBronze |
| Material,Housing | GlassFilledPolyester |
| NumberofContacts | 2 |
| NumberofPositions | 2 |
| PinSpacing | 0.1" |
| Resistance,Insulation | 1000Megohms |
| 标准 | ULRecognized,CSACertified,RoHS,ELVCompliant |
| StrainRelief | LowProfile |
| 风格 | OpenTop |
| TemperatureRange | -65to+105°C |
| Temperature,Operating | -65to+105°C |
| Voltage,DielectricWithstanding | 1000 |
