te connectivity / amp

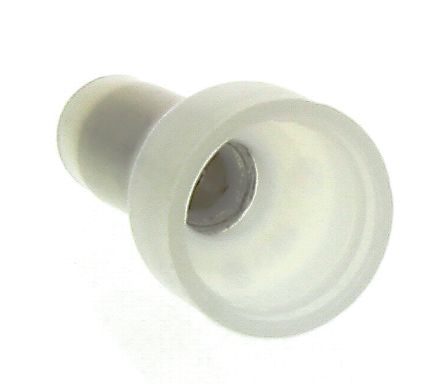

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Splice Terminal |
| 线径规格 | 14-22 AWG |
| 标准包装 | Bulk |
| 产品种类 | Terminals |
| RoHS | RoHS Compliant |
| 产品 | Splices |
| 系列 | 115 |
| 线规 | 22-14 |
| 梭哈/标签大小 | # 6 |
| 绝缘 | Insulated |
| 颜色 | Transparent |
| 性别 | Female |
| 触点材料 | Copper |
| 绝缘材料 | Nylon |
| 封装 | Bulk |
| 工厂包装数量 | 1000 |
| 额定电压 | 300 VAC |
| 终端类型 | Butt Splice, Closed End, Single Opening |
| 电线入口数目 | 1 |
| 端子 | Crimp |
| 其他名称 | A09062 |
| RoHS指令 | Lead free / RoHS Compliant |
| 颜色 | Natural |
| 触点电镀 | Tin |
| 总长 | 17.27mm |
| 弧度硬化 | No |
| 阀体材质 | Copper |
| 主体镀层 | Tin |
| 产品长度（mm ） | 17.27 mm |
| 产品厚度（毫米） | 8.71 mm |
| 连接器类型 | :Splice |
| Insulator Colour | :Transparent |
| 端接方式 | :Crimp |
| 梭哈/标签大小 | :M6.35 |
| Wire Size AWG Min | :22AWG |
| Wire Size AWG Max | :14AWG |
| 绝缘材料 | :Nylon (Polyamide) |
| Wire Size (AWG) | :22AWG to 14AWG |
| Wire Size Range (AWG) | :22-14 |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| Angle | Straight |
| ContactPlating | Tin |
| Diameter,Insulation | 0.251" |
| InsulationType | Nylon |
| Length,Overall | 0.68" |
| Material,Contact | Copper |
| PackageQuantity | 1000 |
| PrimaryType | Splice |
| WireSize | 22-14AWG |
| Electrical mounting | crimped |
| Multiplicity | 1 |
| Gross weight | 0.66 g |
| Ferrule variant | insulated |
| Wire cross section | 0.3...2mm2 |
| 接触镀层 | tinned |
| Contact material | copper |
| Collective package [pcs] | 600 |
| Tip type | closed end splice |
| spg | 600 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
