te connectivity / amp

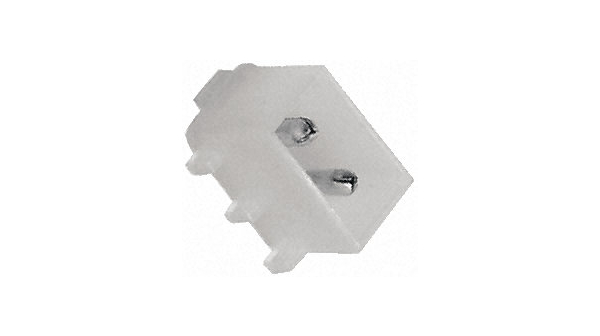

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Power |
| 性别 | HDR |
| 间距 | 5.08 mm |
| 端接方式 | Solder |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 触点接合长度 | 0.180" (4.59mm) |
| 安装类型 | Through Hole |
| 颜色 | Natural |
| 连接器类型 | Header, Shrouded |
| 触点表面涂层 | Tin |
| 封装 | Bulk |
| 行数 | 1 |
| 触点类型 | Male Pin |
| 端子 | Solder |
| 位置数 | 2 |
| 加载位置的数目 | All |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 触点材料 | Phosphor Bronze |
| 触点电镀 | Tin |
| 额定电流 | 13A |
| 触点数 | 2 |
| 系列 | MATE-N-LOK |
| 额定电压 | 250 V ac/dc |
| 工厂包装数量 | 1 |
| 产品种类 | Power to the Board |
| 端接类型 | Solder Pin |
| 联系人性别 | Pin (Male) |
| 外壳材料 | Polyamide (PA) |
| 位置/触点数 | 2 |
| 安装风格 | Through Hole |
| 产品类型 | Headers |
| RoHS | RoHS Compliant |
| 端口数 | 1 Port |
| 额定电流（最大值） | 13/Contact A |
| 产品长度（mm ） | 13.08 mm |
| 端子数 | 2 |
| 额定电压最大 | 250VDC/250VAC |
| 间距（mm） | 5.08 mm |
| 产品高度（mm ） | 10.28 mm |
| 工作温度范围 | -30C to 105C |
| 工作温度最高摄氏度。 | 105C |
| 工作温度敏度。 | -30C |
| 产品范围 | :Commercial MATE-N-LOK Series |
| 接触端子 | :Solder |
| No. of Contacts | :2 |
| No. of Rows | :1 |
| 节距 | :5.08mm |
| Approval Bodies | :CSA, UL |
| Connector Mounting Orientation | :PCB |
| 可燃性等级 | :UL94V-2 |
| 材质 | :Nylon |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.008 |
| Tariff No. | 85369010 |
| 锁定系统 | lock |
| Electrical mounting | THT |
| 额定电流 | 13A |
| Multiplicity | 1 |
| Connector type | male |
| Spatial orientation | straight |
| 连接器 | socket |
| Gross weight | 0.96 g |
| Connector series | Commercial MATE-N-LOK |
| 接触镀层 | tinned |
| Contacts pitch | 5.08mm |
| 针数 | 2 |
| spg | 125 |
| Collective package [pcs] | 125 |
| Type of pin configuration | 1x2 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
