te connectivity / amp

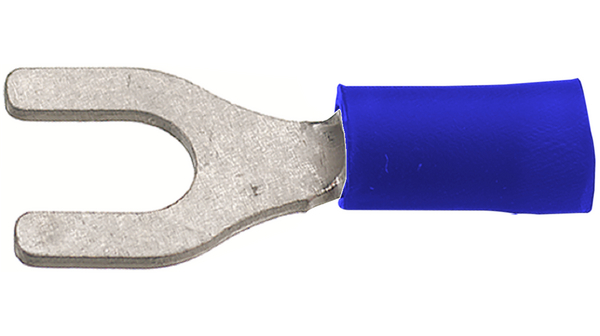

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Spade Tongue Terminal |
| 螺栓尺寸 | 3.5 mm |
| 线径规格 | 14-16 AWG |
| 标准包装 | Bulk |
| 产品种类 | Terminals |
| RoHS | RoHS Compliant |
| 产品 | Fork Terminals |
| 线规 | 16-14 |
| 梭哈/标签大小 | 6 (M3.5) |
| 绝缘 | Insulated |
| 颜色 | Blue |
| 触点电镀 | Tin |
| 绝缘材料 | Vinyl |
| 材质 | Copper |
| 额定电压 | 600 VAC |
| 绝缘技术支持 | Insulation Support |
| 插座样式 | Straight |
| 螺钉直径（毫米（ ） ） | 3.51 [0.138] |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 表面处理 | Tin |
| 品牌 | AMP |
| Wire Range (mm (AWG)) | 1.25-2.00² [16-14] |
| 绝缘直径（毫米（ ） ） | 3.00-4.90 [.118-.193] |
| 体风格 | PLASTI-GRIP |
| 电压（VAC ） | 600 |
| 舌片材料厚度（毫米（ ） ） | 0.84 [0.033] |
| 包装方式 | Loose Piece |
| 端子形状 | Spade Tongue |
| 绝缘套管材料 | Vinyl |
| WireCable类型 | Regular Wire |
| 重型 | No |
| GovernmentIndustry资格 | No |
| 形状 | SPADE-021 |
| RoHSELV符合记录 | Always was RoHS compliant |
| Wire Range (CMA) | 2,050 â 5,180 |
| 梭哈/标签大小 | 6 Stud |
| 长度 - 总体 | 0.920" (23.37mm) |
| 长度 - 终端 | 0.416" (10.57mm) |
| 产品特点 | Serrated Termination |
| 安装类型 | Free Hanging (In-Line) |
| 绝缘直径 | 0.118" ~ 0.193" (3.00mm ~ 4.90mm) |
| 宽度 - 外边 | 0.385" (9.78mm) |
| 封装 | Bulk |
| 材料 - 绝缘体 | Poly-Vinyl Chloride (PVC) |
| 开口内舌 | 0.145" (3.68mm) |
| 长度 - 环中心至终端 | 0.312" (7.92mm) |
| 端子 | Crimp |
| 终端类型 | Standard |
| 触点材料 | Copper |
| RoHS指令 | Lead free / RoHS Compliant |
| 颜色 | Blue |
| 总长 | 23.37mm |
| 宽度 | 9.78mm |
| 连接器类型 | :Spade |
| 系列 | :PG |
| Insulator Colour | :Blue |
| 端接方式 | :Crimp |
| Wire Size AWG Min | :16AWG |
| Wire Size AWG Max | :14AWG |
| 绝缘材料 | :PVC (Polyvinyl Chloride) |
| Operating Temperature Max | :90°C |
| Operating Temperature Min | :-25°C |
| Voltage Rating V AC | :600V |
| Wire Area Size Max | :2.62mm² |
| Wire Area Size Min | :1.04mm² |
| Wire Size (AWG) | :16AWG to 14AWG |
| Wire Size Range (AWG) | :16-14 |
| Wire Size SWG Max | :13 |
| Wire Size SWG Min | :17 |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| Brand/Series | PLASTI-GRIP |
| InsulationType | Vinyl |
| PrimaryType | Spade |
| Size,Stud | 3.68mm |
| SpecialFeatures | ClosedBarrel |
| WireSize | 16to14AWG |
