te connectivity / p&b

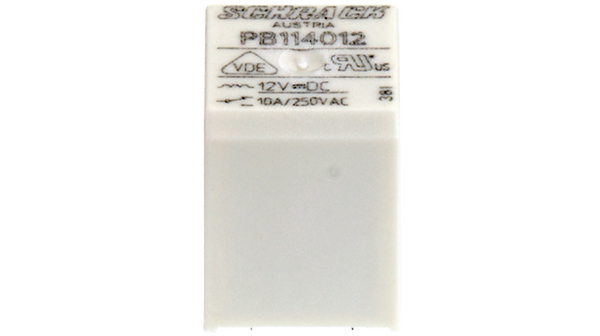

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 标准包装 | Rail / Tube |
| 操作功能 | Single Side Stable |
| Approx Dimensions (L x W x H) (mm [in]) | 15.00 x 15.00 x 20.00 [0.591 x 0.591 x 0.788] |
| 线圈抑制二极管 | Without |
| Tracking Resistance of Relay Base | CTI 250 / Class F - Standard Version |
| 安装 | PC Board |
| 线圈电压 | 24 VDC |
| 符合RoHS / ELV符合记录 | Converted to comply with RoHS directive |
| 电流 | 10 Amps |
| Coil Resistance (ohm) | 100 |
| 极化 | No |
| 驱动系统 | DC |
| Lead Free Solder Processes | Wave solder capable to 240C, Wave solder capable to 260C, Wave solder capable to 265C |
| FCC Part 68 Isolation | n/a |
| MainCategory | Relays |
| Wiring Diagram | n/a |
| Coil Rating | n/a |
| SubCategory | General Purpose Relay |
| 符合RoHS / ELV标准 | RoHS compliant, ELV compliant |
| 联系配置 | 1A SPST-NO |
| Coil Magnetic System | Monostable |
| Coil Insulation Classification | n/a |
| 评论 | n/a |
| 批准标准 | UL Recognized, VDE Approved |
| Coil Power, Nominal | 360 mW |
| 端接类型 | Printed Circuit Terminals |
| LED指示灯 | Without |
| 外壳 | Enclosed |
| 触点材料 | Silver Nickel |
| Dimensions L x W x H | 15 x 15 x 20 mm |
| Ucoil | 24 |
| Rcoil | 1600 |
| Switching voltage | 240 |
| 联系方式 | 1 make contact (NO) |
| Pcoil | 360 |
| Switching current | 10 A |
| Manufacturer Article n° | PB134024 |
| Relay type | Monostable |
| Switching capacity | 2500 VA |
| 测试电压 | 2.5 |
| 间距 | 5 |
| Temperature range | -40...+85 °C |
| Protection rating | IP 54/RT II |
| Contact material | AgNi 90/10 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
