te connectivity / p&b

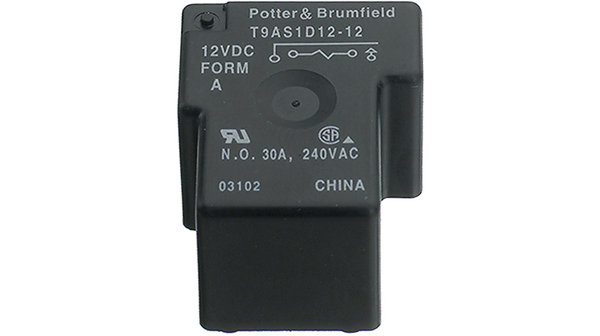

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Industrial Relay |
| 触点形式 | SPDT |
| 最大额定电流 | 20(NO)/10(NC) A |
| 直流线圈电压 | 24 V |
| 安装 | Through Hole |
| 线圈电流 | 42 mA |
| 线圈电阻 | 576 Ohm |
| 触点材料 | Silver Cadmium Oxide |
| 最大交流电压额定值 | 277 V |
| 最大直流额定电压 | 28 V |
| 工作温度 | -55 to 85 °C |
| 标准包装 | Bulk |
| 工作温度范围 | -55C to 85C |
| 吸合电压（最大值） | 18VDC |
| 引脚数 | 5 |
| 触点形式 | 1 Form C |
| 漏失电压（最小值） | 2.4VDC |
| 弧度硬化 | No |
| 端接类型 | PC Pin |
| 安装风格 | Through Hole |
| 密封 | Wash Tight |
| 额定电压（VAC ） | 277V |
| 额定电压（ VDC ） | 28V |
| 产品长度（mm ） | 32.51 mm |
| 产品厚度（毫米） | 27.43 mm |
| 产品高度（mm ） | 20.4 mm |
| 线圈电压DC | 24V |
| 触点额定电流 | 20(NO)/10(NC) A |
| 继电器结构 | Non-Latching |
| 操作时间 | 15 ms |
| 线圈抑制二极管 | No |
| LED指示灯 | No |
| 推到测试按钮 | No |
| 删除 | Compliant |
| 漏失电压 | 2.4VDC |
| 产品范围 | :TE - T9A Series |
| 线圈电压 | :24VDC |
| Contact Current | :30A |
| 联系配置 | :SPDT-CO |
| Relay Mounting | :Through Hole |
| 线圈类型 | :DC Monostable |
| Coil Voltage VDC Nom | :24V |
| Contact Current Max | :30A |
| 外部深度 | :32.51mm |
| 外部高度 | :27.94mm |
| 外宽 | :27.43mm |
| Nom Operating Power | :1W |
| 继电器类型 | :Power |
| Weight (kg) | 0.03 |
| Tariff No. | 85364900 |
| 外形尺寸 | see |
| Relay variant | power |
| Relay series | T9A |
| Contact material | AgCdO |
| 接触电阻 | 75mΩ |
| Coil voltage min | 18V DC |
| Mechanical durability | 10000000cycles |
| Relay type | electromagnetic |
| Operating temperature | -55...85°C |
| AC contacts rating (at resistance load) | 20 A / 240 VAC |
| Switched voltage | max 277V AC, max 28V DC |
| 线圈电阻 | 576Ω |
| Body dimensions | 32.5 x 27.4 x 27.9mm |
| Multiplicity | 1 |
| Contacts configuration | SPDT |
| Collective package [pcs] | 20 |
| Gross weight | 0.03 kg |
| Rated coil voltage | 24V DC |
| Output configuration | see |
| Contact current max | 30A |
| Coil power consumption | 1W |
| Leads | for PCB |
| spg | 20 |
| DC contacts rating (at resistance load) | 10 A / 28 VDC |
