te connectivity / amp

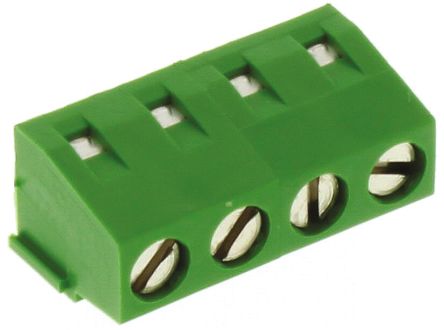

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Terminal Block |
| 触点数 | 4 |
| 间距 | 5 mm |
| 端接方式 | Solder |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 行数 | 1 |
| 外壳颜色 | Green |
| 线径规格 | 16-30 AWG |
| 标准包装 | Bulk |
| 产品种类 | Fixed Terminal Blocks |
| RoHS | RoHS Compliant |
| 产品 | Fixed Terminal Blocks |
| 位置/触点数 | 4 |
| 线规范围 | 30-16 |
| 额定电流 | 13.5 A |
| 额定电压 | 300 VAC |
| 安装方式 | Vertical |
| 触点电镀 | Tin |
| 颜色 | Green |
| 触点材料 | Brass |
| 可燃性等级 | UL 94 V-0 |
| 外壳材料 | Polyamide (PA) |
| 封装 | Bulk |
| 工厂包装数量 | 150 |
| 线规最大 | 16 |
| 线规最小 | 30 |
| 导线方向 | Side |
| 零件号别名 | 512-7312 |
| Wire Range (mm AWG) | 0.05-1.40² [30-16] |
| Wire Entry Diameter (Solid Wire) (mm²) | 0.03 â 1.50 |
| 螺纹法兰 | Without |
| 螺丝规格 | M3 |
| 位置数 | 4 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240°C |
| 螺丝电镀 | Nickel |
| 间距（mm （中） ） | 5.00 [0.197] |
| 品牌 | Buchanan |
| 安装角度 | Vertical |
| 产品类型 | Connector |
| 电压（VAC ） | 300 |
| 侧面可堆叠 | No |
| 连接器类型 | Wire Receptacle |
| 堆叠级别 | Without |
| 触点区域镀层材料 | Tin |
| 印刷电路板尾部长度（毫米） | 3.50 [0.138] |
| 评论 | 10A Field Wiring |
| 联锁 | With |
| 导线入口角度 | Side |
| 螺丝材质 | Brass |
| Wire Entry Diameter (Stranded Wire) (mm²) | 0.03 â 1.00 |
| RoHSELV符合记录 | Always was RoHS compliant |
| 闭尾 | Without |
| 楼层数 | 1 |
| 安装类型 | Through Hole |
| 啮合定位 | Horizontal with Board |
| 线规 | 16-30 AWG |
| 每一级的位置 | 4 |
| 夹钳材料 - 镀层 | Brass - Nickel Plated |
| 螺钉材料 - 镀层 | Brass - Nickel Plated |
| 电流 | 13.5A |
| 螺纹 | M3 |
| 电压 | 300V |
| 导线端子 | Screw - Rising Cage Clamp |
| 转矩 - 螺钉 | 0.68 Nm (6 Lb-In) |
| 触点材料 - 镀层 | Brass - Tin Plated |
| 产品特点 | Interlocking (Side) |
| RoHS指令 | Lead free / RoHS Compliant |
| 颜色 | Green |
| 深度 | 8.2mm |
| 长度 | 20mm |
| 宽度 | 10mm |
| 工作电压（最大） | 300VAC |
| 弧度硬化 | No |
| 额定电流（最大值） | 13.5/Contact A |
| 性别 | M |
| 安装风格 | Through Hole |
| 联系方式行数 | 1 |
| 产品长度（mm ） | 20 mm |
| 产品厚度（毫米） | 8.2 mm |
| 产品高度（mm ） | 10 mm |
| 联系间距（mm） | 5 mm |
| 系列 | :- |
| Connector Mounting | :PCB |
| 节距 | :5mm |
| No. of Contacts | :4 |
| Wire Size AWG Min | :30AWG |
| Wire Size AWG Max | :16AWG |
| Approval Bodies | :CSA, UL |
| No. of Positions | :4 |
| RMS Current (Irms) | :13.5A |
| 终端类型 | :Clamping Screw |
| Voltage Rating V AC | :250V |
| Wire Area Size Max | :1.5mm² |
| Wire Size (AWG) | :30AWG to 16AWG |
| Wire Size Range (AWG) | :15 |
| 工作电压 | :250V |
| Weight (kg) | 0.004 |
| Tariff No. | 85369010 |
| AgencyApprovals | ULRecognized |
| Brand/Series | 282836 |
| ConnectorType | WireReceptacle |
| ContactMatingAreaPlating | Tin |
| Current,Rating | 13.5A |
| Diameter,WireEntry | 0.03to1.50sq.mm(SolidWire),0.03to1.00sq.mm(StrandedWire) |
| 电平 | SingleLevel |
| Material,Contact | Brass |
| Material,Housing | Polyamide6.6 |
| Material,Screw | Brass |
| MountAngle | Straight |
| NumberofPoles | 4Poles |
| PinSpacing | 0.197(5)In.(mm) |
| Plating,ContactMatingArea | Tin |
| Plating,Screw | Nickel |
| PrimaryType | PCB |
| 端子 | Screw |
| Voltage,Rating | 300V |
| WireEntry | Front |
| Wire,AWG | 30-16 |
| Electrical mounting | THT, screw terminal |
| Number of ways | 4 |
| 额定电流 | 13.5A |
| Multiplicity | 1 |
| Contacts pitch | 5mm |
| Connector type | terminal block |
| Spatial orientation | angled 90° |
| Gross weight | 3.67 g |
| Wire cross section | 0.03...1.5mm2 |
| 额定电压 | 300V |
| 身高 | 10mm |
| Collective package [pcs] | 1 |
| spg | 1 |
