TE Connectivity

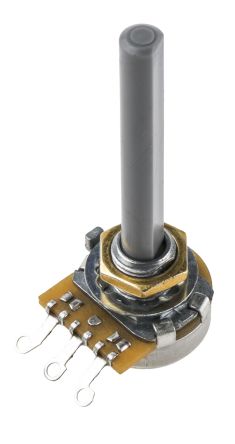

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| メーカ | TE Connectivity |
| RoHS | RoHS 認証 |
| 別の部品番号 | 1624157-2 |
| 深度 | 18.2mm |
| 外形尺寸 | 10.7 x 18.2 x 25.2mm |
| 身高 | 25.2mm |
| 长度 | 10.7mm |
| 最高工作温度 | +70°C |
| 最大阻力 | 220kΩ |
| 最低工作温度 | -25°C |
| 安装孔直径为8mm | 1.3mm |
| 安装类型 | Panel Mount, Through Hole |
| 圈数 | 1 |
| 电位器类型 | Logarithmic |
| 额定功率 | 0.2W |
| 轴直径 | 6.35 mm |
| 端接类型 | Solder Lug |
| 容差 | ±20% |
| RoHS指令 | Compliant |
| 零件号别名 | 1624157-2 |
| Track Resistance | :220kohm |
| Track Taper | :Logarithmic |
| No. of Turns | :1 |
| Shaft Length - Metric | :50mm |
| 电阻公差 | :± 20% |
| 额定电压 | :500V |
| Potentiometer Mounting | :Panel |
| No. of Gangs | :1 |
| 调节型 | :Side |
| 主体直径 | :20.4mm |
| External Length / Height | :10.7mm |
| Full Power Rating Temperature | :40°C |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-10°C |
| 工作温度范围 | :-10°C to +70°C |
| 面板开孔直径 | :9.6mm |
| Proof Voltage | :1000V |
| 电阻 | :220kohm |
| Resistor Element Material | :Metal Foil |
| Rotation Electrical Angle | :267° |
| Rotation Mechanical Angle | :300° |
| 系列 | :23ESB |
| Terminal Resistance | :5ohm |
| 端接类型 | :Solder |
| 螺纹尺寸 | :7.4 M9.5 |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Voltage Rating V AC | :500V |
| Voltage Rating V DC | :500V |
| Weight (kg) | 0.01 |
| Tariff No. | 85334010 |
