TE Connectivity

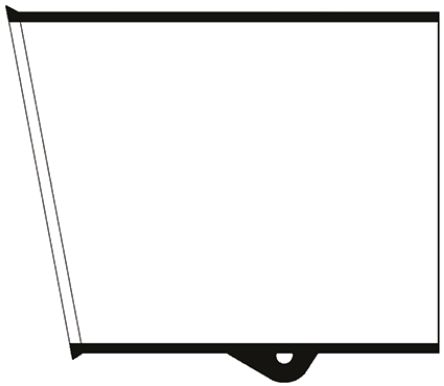

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 类型 | Molded Boot |
| 材质 | Polyolefin, Semi-Rigid Modified |
| 颜色 | Black |
| 工厂包装数量 | 1 |
| 零件号别名 | 822840-000 |
| 胶粘剂描述 | Adhesive Purchased Separately. |
| Angle | 90° |
| 粘合代码 | S1125 |
| 应用 | General Purpose |
| Operating Temperature (°C) | -55 â +135 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 品牌 | Raychem |
| Entry Size - Solid or Fixed Adapter | 4 |
| 产品类型 | Molded Boot |
| Entry Size - Spin Coupling Adapter | 6 â 8 |
| 姓 | 222K1 |
| 入口尺寸编织或磁力成型适配器 | 6, 7, 8, 9 |
| 物料编码 | 3 |
| 评论 | Contact Raychem for additional adhesive and/or cut off boot length information |
| 批准标准 | DEF Std 59-97 Issue 3 Type DA, MIL-I-81765/1 Class I, UL224 E85831 |
| 材料系统编码 | 10 |
| Cable Diameter Range (mm (in)) | 5.90 â 14.00 [0.232 â 0.551] |
| 胶粘剂预涂层 | Without |
| 入口尺寸Tinel锁适配器 | 5, 6, 7, 8 |
| RoHSELV符合记录 | Always was RoHS compliant |
| 尺寸 | 32 |
| 粘性内衬 | No |
| 内径主 | 30mm |
| 内径中学 | 30mm |
| 最高工作温度 | +135°C |
| 最低工作温度 | -55°C |
| 分组讨论数 | 1 |
| 收缩直径主 | 14.2mm |
| 缩水直径中学 | 5.9mm |
| RoHS指令 | Compliant |
| 系列 | 222K1 |
| 长度 | 27 mm |
| 标准包装 | 1 |
| I.D. Supplied - Metric | :30mm |
| I.D. Supplied - Imperial | :1.181" |
| I.D. Recovered Max - Metric | :14.2mm |
| I.D. Recovered Max - Imperial | :0.559" |
| Shrink Tubing / Boot Material | :PO (Polyolefin) |
| Shrink Tubing / Boot Colour | :Black |
| 附件类型 | :Heat Shrink |
| 阀体材质 | :PO (Polyolefin) |
| Cable Diameter Max | :30mm |
| Cable Diameter Min | :5.9mm |
| 颜色 | :Black |
| Fully Shrunk Diameter | :14.2mm |
| I.D. Max Recovered | :14.2mm |
| I.D. Supplied | :30mm |
| 内部直径 | :30mm |
| Length (Imperial) | :1.26" |
| Operating Temperature Max | :+135°C |
| Operating Temperature Min | :-55°C |
| Shrink Type | :Heat |
| Unshrunk Diameter | :30mm |
| Weight (kg) | 0.0637 |
| Tariff No. | 85469090 |
| RESOURCE TYPE | LINK |
|---|---|
