te connectivity / amp

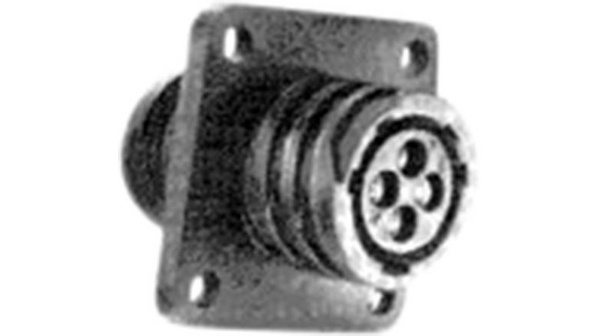

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | CPC |
| 性别 | RCP |
| 端接方式 | Crimp |
| 安装 | Panel Mount |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 键控 | A |
| 外壳尺寸 | 23 |
| 端接类型 | Wire |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 密封 | No |
| 面板固定方法 | Square Flange |
| 适用于 | Socket Contacts |
| 标准或反向性别 | Reverse |
| 位置数 | 37 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| VDE认证 | No |
| 外壳材料 | Nylon |
| 产品系列 | Series 1 |
| 预装 | No |
| 外壳颜色 | Black |
| 产品类型 | Connector |
| 翻转编号 | Without |
| 壳体防火等级 | UL 94V-0 |
| 评论 | 5 Locating Key Arrangement. |
| Insulation Diameter (mm in) | 2.54 [0.100] |
| 安装方式 | Panel |
| 外壳类型 | All Plastic |
| RoHSELV符合记录 | Always was RoHS compliant |
| 子类别 | Connector Circular |
| 交货期 | 28 Days |
| 封装 | Bulk |
| 触点尺寸 | 16 |
| 定位 | A |
| 安装类型 | Panel Mount, Flange |
| 外壳尺寸 - 插件 | 23-37 |
| 连接器类型 | Receptacle for Female Contacts |
| 外壳材料，表面处理 | Thermoplastic |
| 注 | Contacts Not Provided |
| 紧固型 | Threaded |
| 触点类型 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 联系人性别 | Female |
| 最高工作温度 | +105°C |
| 最低工作温度 | -55°C |
| 触点数 | 37 |
| 额定电压 | 250 V ac |
| 工厂包装数量 | 1 |
| 插方式 | Keyed |
| 电源位置数 | 0 |
| 连接器类型 | Receptacle |
| PCB保持结构 | Without |
| 产品种类 | Standard Circular Connector |
| 位置/触点数 | 37 |
| 信号位置数 | 37 |
| 可燃性等级 | UL 94 V-0 |
| 商品名 | CPC Series 1 |
| 匹配样式 | Threaded |
| 外壳类型 | Receptacle |
| RoHS | RoHS Compliant |
| 安装方式 | Straight |
| 反性别 | Reverse |
| 系列 | CPC |
| 安装风格 | Panel |
| 工作温度范围 | -55C to 105C |
| 弧度硬化 | No |
| 应力消除 | No |
| 外壳尺寸/插入安排 | 23-37 |
| 产品长度（mm ） | 27.18 mm |
| 产品厚度（毫米） | 44.45 mm |
| 产品高度（mm ） | 44.45 mm |
| 触点分类 | 37Signal |

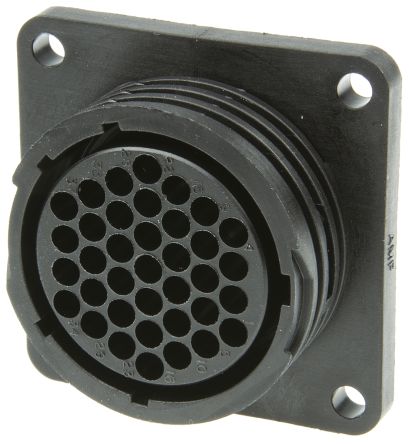

| 家庭 | 206306 |
| Connector Body Material | :Thermoplastic |
| Connector Mounting | :Panel |
| Connector Shell Size | :23 |
| 插入安排 | :23-37 |
| No. of Positions | :37 |
| 颜色 | :Black |
| 额定电流 | :13A |
| 房屋类型 | :Glass filled nylon 6.6 |
| 绝缘电阻 | :5000Mohm |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| 面板开孔直径 | :40.9mm |
| Voltage Rating V AC | :250V |
| 工作电压 | :250V |
| Weight (kg) | 0.02 |
| Tariff No. | 85369010 |
| Angle | Straight |
| 应用 | Commercial |
| Brand/Series | Series1 |
| 颜色 | Black |
| ContactType | Socket |
| Diameter,Insulation | 0.1" |
| Diameter,MountingHole | 0.15" |
| FlammabilityRating | UL94-V0 |
| HousingType | Plastic |
| InsertArrangement | 23-37 |
| IPRating | IP65 |
| Material,Housing | Thermoplastic |
| MatingType | Threaded |
| MountingType | Flanged |
| NumberofContacts | 37 |
| PrimaryType | CircularPlasticConnector |
| ShellSize | 23 |
| SpecialFeatures | ReverseGender |
| Thickness,Panel | 0.125" |
| 锁定系统 | threaded joint, external thread |
| Mechanical mounting | flange (4 holes), for panel mounting |
| Flammability rating | UL94V-0 |
| 案例 | size 23 |
| 极化 | A |
| Multiplicity | 1 |
| Connector type | female |
| 连接器 | socket |
| Gross weight | 0.02 kg |
| Connector series | CPC Series 1 |
| Connector variant | w/o terminals |
| 针数 | 37 |
| Collective package [pcs] | 1 |
| Enclosure material | thermoplastic |
| spg | 1 |
