te connectivity / raychem wire

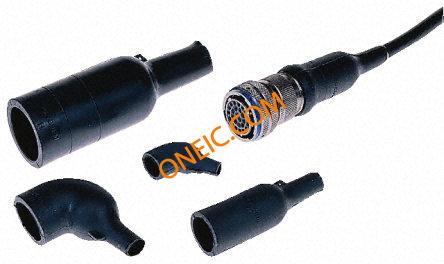

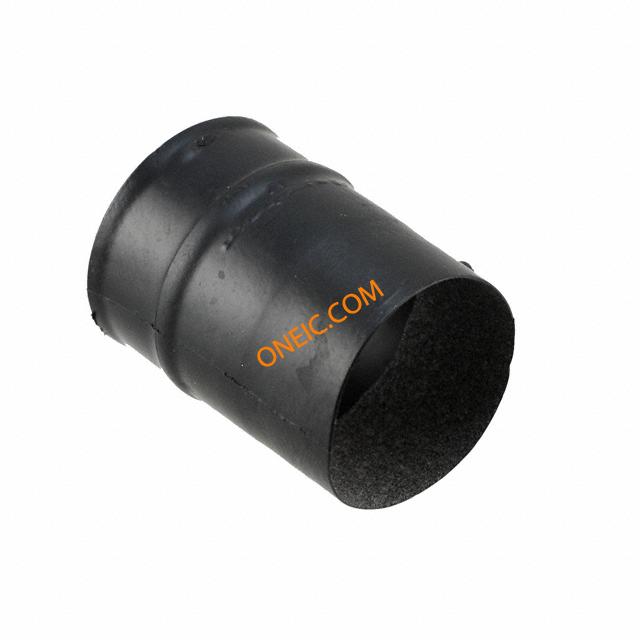

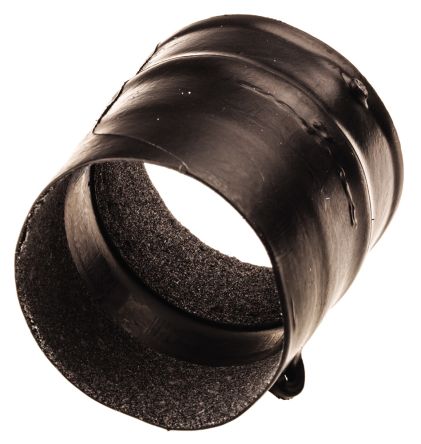

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Molded Boot |
| 家庭 | 202K1 |
| 标准包装 | Bulk |
| 产品种类 | Heat Shrink Tubing and Sleeves |
| RoHS | RoHS Compliant |
| 材质 | Elastomer |
| 颜色 | Black |
| 最低收缩温度 | + 135 C |
| 恢复直径 | 18 mm, 7.1 mm |
| 长度 | 67 mm |
| 内径 | 31 mm, 31 mm |
| 耐化学性 | Yes |
| 产品特点 | Unicure pre-coated epoxy adhesive, straight |
| 最高温度 | + 150 C |
| 工作温度范围 | - 75 C to + 150 C |
| 封装 | Bulk |
| 零件号别名 | 864607-000 |
| 胶粘剂描述 | Unicure Pre-Coated Epoxy Adhesive |
| Angle | Straight |
| 粘合代码 | 225 |
| 应用 | General Purpose, Military |
| Operating Temperature (°C) | -75 â +150 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 品牌 | Raychem |
| Entry Size - Solid or Fixed Adapter | 6 |
| 产品类型 | Molded Boot |
| Entry Size - Spin Coupling Adapter | 8 â 10 |
| 姓 | 202K1 |
| 入口尺寸编织或磁力成型适配器 | 10, 11 |
| 物料编码 | 25 |
| 评论 | Use only with DR-25 tubing. |
| 批准标准 | DEF Std 59-97 Issue 3 Type DE, MIS-34867, VG95343 Parts 6, 7, 8, & 9 |
| 材料系统编码 | 25 |
| Cable Diameter Range (mm (in)) | 7.10 â 16.00 [0.280 â 0.630] |
| 胶粘剂预涂层 | With |
| 入口尺寸Tinel锁适配器 | 7, 8, 10 |
| RoHSELV符合记录 | Always was RoHS compliant |
| 尺寸 | 42 |
| 大已恢复长度 | 1.380" (35.1mm) |
| 小直径恢复 | 0.280" (7.1mm) |
| 小口径提供 | 0.710" (18.0mm) |
| 大口径恢复 | 0.710" (18.0mm) |
| 外壳尺寸 - 插件 | 42 |
| 小已恢复长度 | 0.669" (17.0mm) |
| 大口径提供 | 1.220" (31.0mm) |
| 总长恢复 | 2.640" (67.0mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 粘性内衬 | Yes |
| 内径主 | 31mm |
| 内径中学 | 31mm |
| 最高工作温度 | +150°C |
| 最低工作温度 | -75°C |
| 分组讨论数 | 1 |
| 收缩直径主 | 18mm |
| 缩水直径中学 | 7.1mm |
| I.D. Supplied - Metric | :31mm |
| I.D. Supplied - Imperial | :1.22" |
| I.D. Recovered Max - Metric | :18mm |
| I.D. Recovered Max - Imperial | :0.71" |
| 收缩率 | :- |
| Shrink Tubing / Boot Material | :Elastomer |
| Shrink Tubing / Boot Colour | :Black |
| Total Length - Metric | :67mm |
| Total Length - Imperial | :2.64" |
| 附件类型 | :Molded Boot |
| 阀体材质 | :Elastomer |
| 颜色 | :Black |
| 适用于 | :Cable |
| Weight (kg) | 0.007 |
| Tariff No. | 39269097 |
| Brand/Series | 202K |
