te connectivity / raychem wire

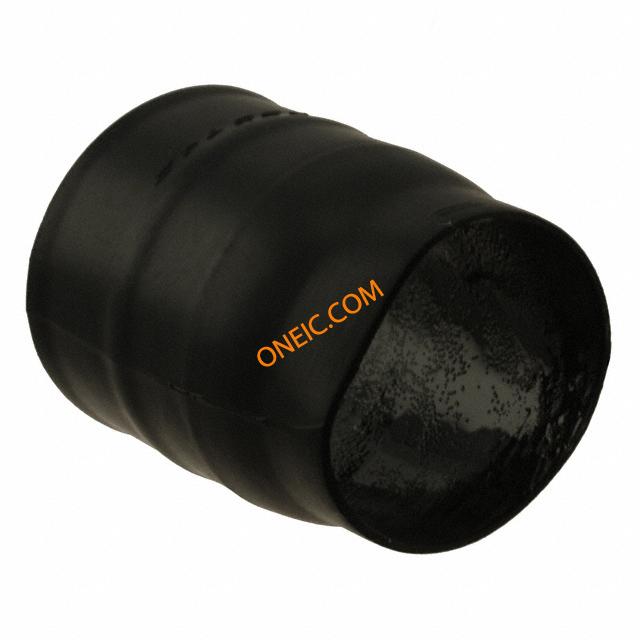

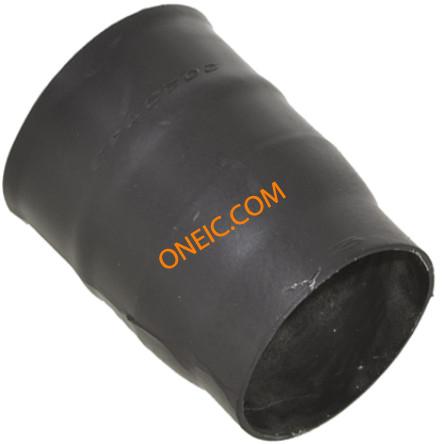

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Boot |
| 标准包装 | Bulk |
| RoHS | RoHS Compliant |
| 材质 | Polyolefin (PO) |
| 颜色 | Black |
| 最低收缩温度 | + 100 C |
| 恢复直径 | 17.8 mm, 7.2 mm |
| 长度 | 66.8 mm |
| 内径 | 31 mm, 31 mm |
| 耐化学性 | Yes |
| 家庭 | 202D1 |
| 产品特点 | General Purpose pre-coat adhesive, straight |
| 可燃性等级 | UL 224 |
| 最高温度 | + 135 C |
| 工作温度范围 | - 55 C to + 135 C |
| 零件号别名 | 814342-000 |
| 胶粘剂描述 | General Purpose Pre-Coat Adhesive |
| Angle | Straight |
| 粘合代码 | 42 |
| 应用 | General Purpose |
| Operating Temperature (°C) | -20 â +60 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 品牌 | Raychem |
| Entry Size - Solid or Fixed Adapter | 6 â 8 |
| 产品类型 | Molded Boot |
| Entry Size - Spin Coupling Adapter | 8 â 14 |
| 姓 | 202D1 |
| 入口尺寸编织或磁力成型适配器 | 10, 11, 12, 13, 14, 15, 16 |
| 物料编码 | 4 |
| 批准标准 | DEF Std 59-97 Issue 3 Type DA, MIL-I-81765/2 Class II, UL224 E85831 |
| 材料系统编码 | 10 |
| Cable Diameter Range (mm (in)) | 7.10 â 16.00 [0.280 â 0.630] |
| 胶粘剂预涂层 | With |
| 入口尺寸Tinel锁适配器 | 7, 8, 10, 12, 14 |
| RoHSELV符合记录 | Always was RoHS compliant |
| 尺寸 | 42 |
| 工业别名 | 202D142-4/42-0, 814342-000 |
| 子类别 | Heat Shrink |
| 交货期 | 28 Days |
| 小直径恢复 | 0.283" (7.2mm) |
| 小口径提供 | 1.220" (31.0mm) |
| 大口径恢复 | 0.700" (17.8mm) |
| 外壳尺寸 - 插件 | 42 |
| 大口径提供 | 1.220" (31.0mm) |
| 总长恢复 | 2.630" (66.8mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 粘性内衬 | Yes |
| 袖型 | Heat Shrink |
| Brand/Series | 202D |
| Power Cable Accessory | No |
| 入口尺寸（编织或磁力成型适配器） | 10, 11, 12, 13, 14, 15, 16 |
| Molded Part Type | Molded Boot |
| Wire/Cable Outside Diameter | .3 in, .31 in, .35 in, .39 in, .43 in, .433 in, .47 in, .55 in, 10 mm, 11 mm, 12 mm, 14 mm, 8 mm, 9 mm |
| 入口尺寸（实心或固定适配器） | 6 – 8 |
| Lipped | Yes |
| 材料 | 改性聚烯烃 |
| Adhesive Pre-Coat | Yes |
| 电缆直径范围 | 7.1 – 16 mm [ .28 – .63 in ] |
| Adhesive Options | /42 Precoat, -20 – 60°C (-4 – 140°F) |
| 符合政府资质 | 否 |
| 粘合剂类型 | 通用预涂粘合剂 |
| 入口尺寸（Tinel-Lock 适配器） | 7, 8, 10, 12, 14 |
| 工作温度范围 (°C) | -20 – 60 |
| 材料系统代码 | 10 |
| 入口尺寸（自旋耦合适配器） | 8 – 14 |
| Fluid/Chemical Resistance | Suitable for occasional exposure to fluids |
