te connectivity / amp

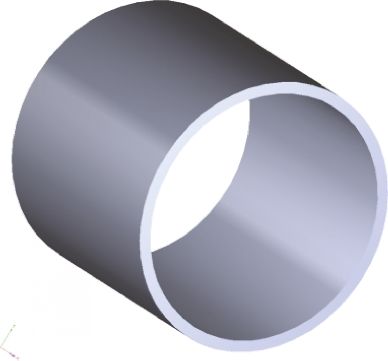

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Ferrule |
| 标准包装 | Bulk |
| 产品种类 | Terminals |
| RoHS | RoHS Compliant |
| 产品 | Ferrules |
| 绝缘 | Not Insulated |
| 性别 | Female |
| 触点电镀 | Tin |
| 触点材料 | Copper |
| 长度 | 11.18 mm |
| 材质 | Copper |
| 安装方法 | Wire |
| 封装 | Bulk |
| 工厂包装数量 | 100 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 套圈形状 | Straight |
| 产品系列 | HD-20 (Solder Cup), HDE-20 (IDC), HDP-20 (Crimp Snap), HDP-22 (Crimp Snap) |
| 等级 | Standard |
| 套圈材料 | Steel (annealed) |
| 品牌 | AMP |
| 套圈镀层 | Bright Tin |
| 外壳类型 | Full Metal Shell |
| 外壳尺寸 | 1, 2, 3 |
| 产品类型 | Accessory |
| RoHSELV符合记录 | Always was RoHS compliant |
| 电缆绝缘直径（毫米（ ） ） | 9.53 â 11.05 [0.375 â 0.437] |
| 产品特点 | Shielded |
| 附件类型 | Ferrule, Outer |
| 其他名称 | A31521 |
| 配用/相关产品 | D-Sub Connectors Series AMPLIMITE HD-20, HDE-20, HDP-20, HDP-22 |
| 位置数 | 9 ~ 25 |
| RoHS指令 | Lead free / RoHS Compliant |
| 安装方式 | Straight |
| 阀体材质 | Steel |
| 主体镀层 | Bright Tin-Lead |
| 产品长度（mm ） | 11.17 mm |
| 产品直径（mm ） | 11.6 mm |
| 系列 | :AMPLIMITE HD-20, HDE-20, HDP-20, HDP-22 |
| 适用于 | :D Sub Connectors and Backshells |
| Connector Body Material | :Steel |
| Cable Diameter Max | :11.05mm |
| Weight (kg) | 0.000001 |
| Tariff No. | 85366910 |
| Angle | Straight |
| Brand/Series | HD-20,HDE-20,HDP-20,HDP-22 |
| 颜色 | No-Color |
| Diameter,CableInsulation | 0.375to0.435Inch |
| InsulationType | Uninsulated |
| Length,Overall | 0.44" |
| Material,Plating | BrightTin |
| PackageQuantity | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
