te connectivity / amp

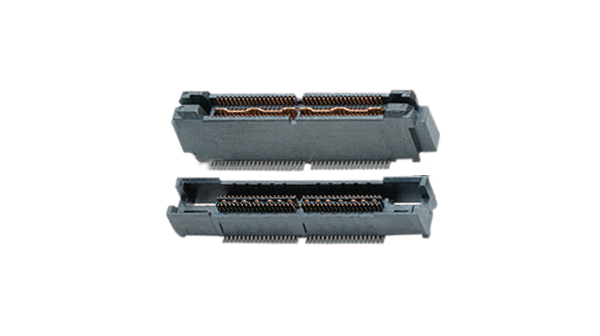

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | High Speed Fine Pitch Connector |
| 间距 | 2.54/0.64 mm |
| 行数 | 2 |
| 触点数 | 38 |
| 性别 | RCP |
| 触点电镀 | Gold Over Nickel |
| 端接方式 | Solder |
| 标准包装 | Rail / Tube |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| 接地母线材料 | Phosphor Bronze |
| Lead Free Solder Processes | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| 端子终端电镀 | Tin over Nickel |
| 触点材料 | Copper Alloy |
| 触点区域镀层材料 | Gold (30) over Nickel |
| 包装方式 | Tube |
| 接地总线引线类型 | Barbed |
| 间距（毫米） | 0.64 [0.025] |
| 外壳材料 | Liquid Crystal Polymer (LCP) |
| 安装角度 | Vertical |
| 接地总线引线长度（毫米（ ） ） | 1.40 [0.055] |
| 接地总线端接区域 | Tin over Nickel |
| 接地总线配合部位镀层 | Gold (30) |
| 插配堆叠高度（垂直） （毫米） | 6.60 [0.260], 9.00 [0.354], 10.92 [0.430], 12.57 [0.495], 17.96 [0.707], 18.75 |
| 产品类型 | Connector |
| RoHSELV符合记录 | Always was RoHS compliant |
| 位置数 | 38 |
| 真空盖 | Without |
| 产品特点 | Board Guide, Ground Bus (Plane) |
| 安装类型 | Surface Mount |
| 连接器类型 | Receptacle, Center Strip Contacts |
| 触点表面涂层 | Gold |
| 封装 | Tube |
| 板上方高度 | 0.236" (6.00mm) |
| 啮合堆叠高度 | 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, 22.86mm |
| Contact Finish Thickness | 30µin (0.76µm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 身体上的取向 | Straight |
| CAD绘图 | 3D CAD Model |
| 额定电流 | 11.5A |
| 额定电压 | 30 V ac |
| 工厂包装数量 | 21 |
| 产品种类 | Power to the Board |
| 系列 | Mictor |
| 端接类型 | Through Hole |
| 安装风格 | PCB |
| 位置/触点数 | 38 |
| 零件号别名 | CF3275-000 |
| RoHS | RoHS Compliant |
| 工作温度范围 | -55C to 125C |
| 接触电阻最大 | 10 mohm |
| 额定电流（最大值） | (11.5/1)/Contact A |
| 联系方式行数 | 2 |
| 外壳颜色 | Black |

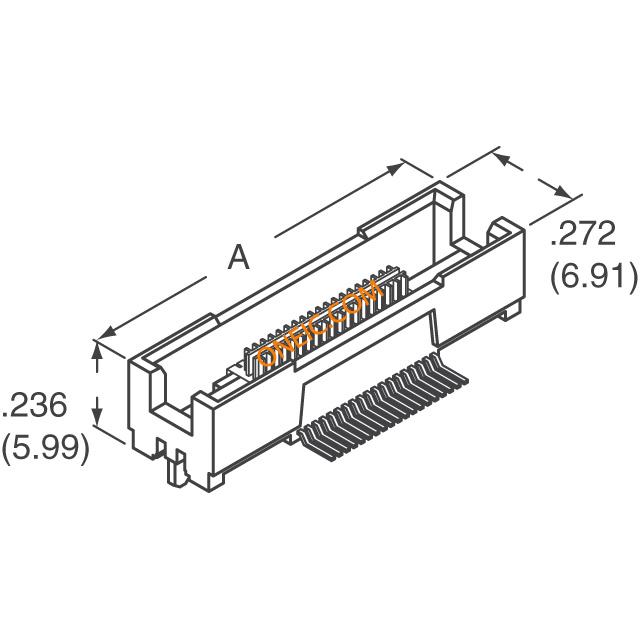

| 产品长度（mm ） | 25.4 mm |
| 产品厚度（毫米） | 6.91 mm |
| 产品高度（mm ） | 6.1 mm |
| 额定电压最大 | 30VAC |
| 间距（mm） | 2.54/0.64 mm |
| 节距 | :0.64mm |
| No. of Contacts | :38 |
| No. of Rows | :2 |
| 接触端子 | :Solder |
| Approval Bodies | :CSA, UL |
| Approval Category | :E28476 |
| 颜色 | :Black |
| Connector Insert Type | :Socket |
| Connector Mounting Orientation | :PCB |
| 住房 | :Liquid Crystal Polymer |
| 绝缘电阻 | :10000Mohm |
| 绝缘材料 | :Polyester |
| 长度 | :25.4mm |
| 安装方向 | :Verticle |
| Operating Temperature Max | :+125°C |
| Operating Temperature Min | :-55°C |
| Voltage Rating V AC | :30V |
| 耐压 | :500V |
| Weight (kg) | 0.05 |
| Tariff No. | 85369010 |
| AgencyApprovals | CSA,UL |
| Angle | Straight |
| Brand/Series | MICTOR |
| 颜色 | Black |
| ContactPlating | Gold(30)overNickel |
| Current,Rating | 1A |
| Length,Overall | 1" |
| Length,Pin | 0.055" |
| Material,Contact | CopperAlloy |
| Material,Housing | LCP |
| NumberofContacts | 38 |
| NumberofRows | 2 |
| PinSpacing | 0.025" |
| PrimaryType | BoardtoBoard |
| Temperature,Operating | -55to+125°C |
| 端子 | Thru-Hole |
| Voltage,Rating | 30V |
