te connectivity / amp

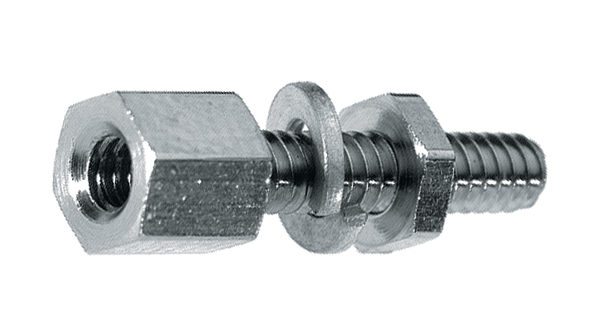

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Jack Socket Assembly Kit |
| 家庭 | 1437012 |
| 标准包装 | Bulk |
| 评论 | All parts are packaged unassembled. / For Rear Panel Mount. / Each female screwl |
| RoHSELV合规性 | RoHS compliant / ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 螺丝材质 | Stainless Steel |
| GovernmentIndustry资格 | No |
| 附件类型 | Female Screwlock Assembly Kit / Jack Socket Assembly |
| 品牌 | AMP |
| 包装方式 | Bulk |
| 包装数量 | 50 |
| 螺纹尺寸 | 4-40 |
| 螺钉锁形式 | Screwlock With Lockwasher and Hex Nut |
| 面板厚度 | 1.57 |
| 螺丝长度 | 12.7 |
| 接螺纹尺寸 | 4-40 Screw |
| 适用于 | Metal Shell or All Plastic Connectors (HDP or HDF) |
| 螺纹长度 | 12.7 |
| 机身表面处理 | Passivated |
| RoHSELV符合记录 | Always was RoHS compliant |
| 螺丝表面处理 | Passivated |
| 配用/相关产品 | D-Sub Connectors |
| 其他名称 | 214370124 |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品长度（mm ） | 17.78 mm |
| 产品厚度（毫米） | 4.75 mm |
| 身体上的取向 | Straight |
| 产品直径（mm ） | Not Required mm |
| 包括 | 1-JackSocket,1-Lockwasher,1-HexNut |
| JackscrewType | Standard |
| Length,Screw | 0.5in. |
| Material,Plating | Passivated |
| Material,Screw | StainlessSteel |
| Size,Thread | 4-40UNC |
| TycoPartNumber | 609-006-1 |
| UsedWith | D-SubConnectors |
| 螺纹尺寸 | 4-40 Socket, 4-40 Screw |
| 配件类型 | Jackscrew Socket |
| A | 3.8 |
| C | 4.8 |
| B | 14 |
| Description | Threaded bolt |
| 螺纹 | UNC 4-40 |
| Manufacturer Article n° | 609-006-1 |
| Thread, internal and external | UNC 4-40 |
| 附件类型 | 插孔插座组件 |
| 螺纹长度 | 12.7 mm [ .5 in ] |
| 适用于 | 金属外壳或所有塑料连接器（HDP 或 HDF） |
| ねじ長 | 17.78 mm [ .7 in ] |
| 接合螺纹尺寸 | 14702 |
| 封装数量 | 50 |
| 螺钉锁种类 | 带锁紧垫圈和六角螺母的螺钉锁 |
| 封装方法 | 包装 |
| 面板厚度 | 1.57 mm [ .062 in ] |
| ねじの材質 | 不锈钢 |
| 产品类型 | 附件 |
| ねじの仕上げ | 钝化 |
