te connectivity / p&b

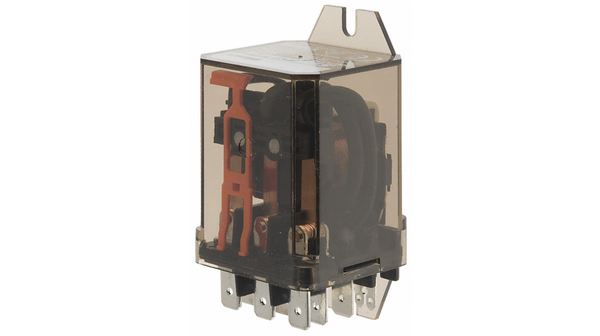

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 标准包装 | Bulk |
| 外形尺寸 | see |
| 安装 | holders |
| Relay variant | miniature, industrial |
| Contact current max | 25A |
| AC contacts rating (at resistance load) | 25 A / 250 VAC |
| Switching capacity | 6000VA |
| Mechanical durability | 100000000cycles |
| Relay type | electromagnetic |
| Operating temperature | -45...40°C |
| Contact material | AgCdO |
| Switched voltage | max 440V AC, max 300V DC |
| 线圈电阻 | 110Ω |
| Coil current | 92mA |
| Body dimensions | 38.5 x 38.5 x 58.5mm |
| Multiplicity | 1 |
| Contacts configuration | DPDT |
| Release time | 15ms |
| Gross weight | 0.06 kg |
| Rated coil voltage | 12V DC |
| Output configuration | see |
| Relay series | RM8 |
| 重量 | 81g |
| Coil power consumption | 1.1W |
| Leads | 6.3x0.8mm connectors |
| Operate time | 15ms |
| DC contacts rating (at resistance load) | 25 A / 30 VDC |
| 操作功能 | Single Side Stable |
| Approx Dimensions (L x W x H) (mm [in]) | 38.90 x 35.70 x 48.40 [1.532 x 1.406 x 1.907] |
| 线圈抑制二极管 | Without |
| 线圈电压 | 12 VDC |
| 符合RoHS / ELV符合记录 | Converted to comply with RoHS not ELV directives |
| 电流 | 25 Amps |
| Coil Resistance (ohm) | 110 |
| Lead Free Solder Processes | Not relevant for lead free process |
| MainCategory | Relays |
| 测试按钮 | Without |
| Wiring Diagram | RM2/8 2 Pole |
| 极化 | No |
| SubCategory | Power Relay |
| 符合RoHS / ELV标准 | RoHS/Not ELV Compliant |
| 联系配置 | 2C DPDT |
| Coil Magnetic System | Monostable |
| 驱动系统 | DC |
| 批准标准 | UL Recognized, CSA Certified |
| Coil Power, Nominal | 1.2 W |
| 线圈选择标准 | Nominal Voltage |
| 端接类型 | .250 x .032 QC |
| LED指示灯 | Without |
| 外壳 | Enclosed |
| 触点材料 | Silver Cadmium Oxide |
| Dimensions L x W x H | 35.5 x 38.5 x 73.5 mm |
| Ucoil | 12 |
| Rcoil | 110 |
| 联系方式 | 2 change-over (CO) |
| Pcoil | 1.3 |
| Manufacturer Article n° | RM805012 |
| Switching voltage | 400 VAC |
| 测试电压 | 6 |
| Former type | RM805012 |
| Temperature range | -40...+65 °C |
| Switching current | 25 A |
