te connectivity / amp

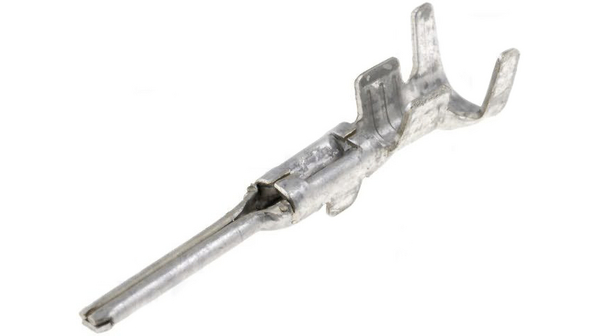

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector Power |
| 触点类型 | Power |
| 触点材料 | Brass |
| 触点电镀 | Pre-Tin |
| 性别 | PIN |
| 端接方式 | Crimp |
| 标准包装 | Bulk |
| 产品种类 | Terminals |
| RoHS | RoHS Compliant |
| 产品 | Tab Terminals |
| 线规 | 18-15 |
| 梭哈/标签大小 | 0.25 in |
| 绝缘 | Not Insulated |
| 端接类型 | Crimp |
| 材质 | Brass |
| 封装 | Bulk |
| 工厂包装数量 | 5000 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Wire Range (mm AWG) | 0.75-1.50² [18.5-15.5] |
| Lead Free Solder Processes | Not relevant for lead free process |
| 包装方式 | Loose Piece |
| 导线绝缘直径（毫米） | 1.80 â 3.30 [0.071 â 0.130] |
| 触点区域镀层材料 | Pre-Tin |
| 产品线 | Super Seal |
| 产品类型 | Contact |
| RoHSELV符合记录 | Always was RoHS compliant |
| 触点表面涂层 | Tin |
| 针脚或插座 | Tab |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 总长 | 23mm |
| 工作温度范围 | -40C to 125C |
| 端口数 | 1 Port |
| 外壳材料 | Not Required |
| 安装风格 | Cable |
| 身体上的取向 | Straight |
| 工作温度最高摄氏度。 | 125C |
| 类型 | Contact |
| 触点数 | 1 POS |
| 工作温度敏度。 | -40C |
| 产品长度（mm ） | 22.7 mm |
| 产品高度（mm ） | 4.7 mm |
| 端子数 | 1 |
| 间距（mm） | Not Required mm |
| 系列 | :SUPERSEAL |
| 适用于 | :Super Seal 1.5 Series Connectors |
| 联系人性别 | :Pin |
| Wire Size AWG Min | :18AWG |
| Wire Size AWG Max | :16AWG |
| Cable Diameter Max | :3.3mm |
| Cable Diameter Min | :1.8mm |
| 额定电流 | :14A |
| Wire Area Size Max | :1.5mm² |
| Wire Area Size Min | :0.75mm² |
| Weight (kg) | 0.028 |
| Tariff No. | 85369010 |
| Brand/Series | SUPERSEALSeries |
| 端子 | Crimp |
| 连接器 | contact |
| Maximum current | 14A |
| Multiplicity | 10 |
| Connector series | Superseal 1.5 |
| Connector type | male |
| Gross weight | 0.39 g |
| Dedicated tool | 58583-1, 9-1579007-1 |
| Package type | in bulk |
| 接触镀层 | tinned |
| Wire cross section | 0.75...1.5mm2 |
| Wire size | 16...20AWG |
| Collective package [pcs] | 5000 |
| spg | 5000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
