te connectivity / amp

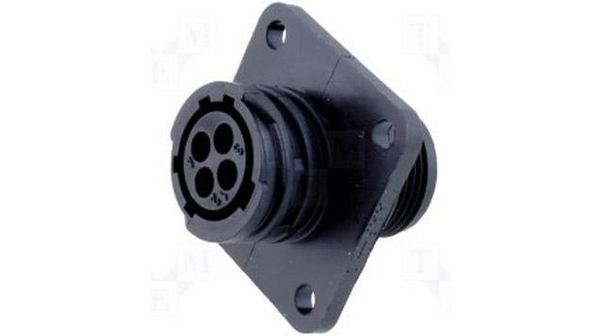

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | CPC |
| 性别 | RCP |
| 安装 | Panel Mount |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 外壳尺寸 | 11 |
| 端接类型 | Wire |
| 外壳材料 | Thermoplastic |
| 密封 | No |
| 面板固定方法 | Square Flange |
| 适用于 | Socket Contacts |
| 标准或反向性别 | Reverse |
| 位置数 | 4 |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| VDE认证 | No |
| 产品系列 | Series 1 |
| UL认证 | Recognized |
| 外壳颜色 | Black |
| 绝缘直径（毫米（ ） ） | 2.54 [0.100] |
| 产品类型 | Connector |
| 翻转编号 | With |
| CSA认证 | Yes |
| 包装数量 | 25 |
| 壳体防火等级 | UL 94V-0 |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A |
| 安装方式 | Panel |
| 外壳类型 | All Plastic |
| RoHSELV符合记录 | Always was RoHS compliant |
| 预装 | No |
| 封装 | Bulk |
| 触点尺寸 | 16 |
| 定位 | Keyed |
| 安装类型 | Panel Mount, Flange |
| 外壳尺寸 - 插件 | 11-4 |
| 连接器类型 | Receptacle for Female Contacts |
| 外壳材料，表面处理 | Thermoplastic |
| 注 | Contacts Not Provided |
| 紧固型 | Threaded |
| 触点类型 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| CAD绘图 | 3D CAD Model |
| 联系人性别 | Female |
| 触点数 | 4 |
| 工厂包装数量 | 100 |
| 插方式 | Keyed |
| 电源位置数 | 0 |
| 连接器类型 | Receptacle |
| PCB保持结构 | Without |
| 产品种类 | Standard Circular Connector |
| 位置/触点数 | 4 |
| 信号位置数 | 4 |
| 可燃性等级 | UL 94 V-0 |
| 商品名 | CPC Series 1 |
| 匹配样式 | Threaded |
| 外壳类型 | Receptacle |
| RoHS | RoHS Compliant |
| 安装方式 | Straight |
| 反性别 | Reverse |
| 系列 | CPC |
| 安装风格 | Panel |
| Connector Body Material | :Thermoplastic |
| Connector Mounting | :Panel |
| Connector Shell Size | :11 |
| 插入安排 | :11-4 |
| No. of Contacts | :4 |
| 接触端子 | :- |
| 触点材料 | :- |
| 触点电镀 | :- |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| Brand/Series | Series1 |
| ContactType | PinorSocket |
| IPRating | IP65 |
| MatingType | In-Line |
| MountingType | PanelMount |
| NumberofContacts | 4 |
| PrimaryType | Connector |
| ShellSize | 11 |
| 锁定系统 | threaded joint, external thread |
| Mechanical mounting | flange (4 holes), for panel mounting |
| Flammability rating | UL94V-0 |
| 案例 | size 11 |
| Multiplicity | 1 |
| Connector type | female |
| 连接器 | socket |
| Gross weight | 8.66 g |
| Connector series | CPC Series 1 |
| Connector variant | w/o terminals |
| 针数 | 4 |
| Collective package [pcs] | 100 |
| Enclosure material | thermoplastic |
| spg | 100 |
