te connectivity / amp

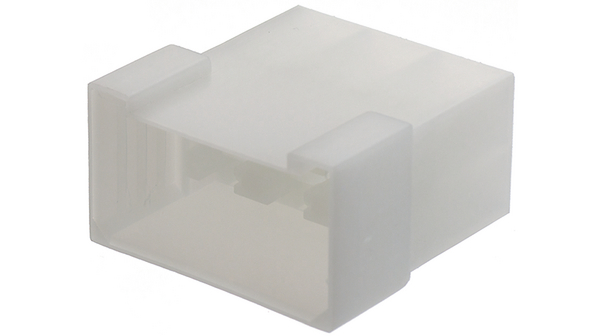

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 间距 | 9.14 mm |
| 触点数 | 6 |
| 行数 | 2 |
| 性别 | PL |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| FASTON | Yes |
| 颜色 | Natural |
| 电路数 | 6 |
| 包装方式 | Loose Piece |
| 包装数量 | 100 |
| 外壳材料 | Nylon |
| 标签飞度（毫米） | 6.35 [.250] |
| 壳体防火等级 | UL 94V-2 |
| 产品类型 | Tab Housing |
| RoHSELV符合记录 | Always was RoHS compliant |
| 行 | FASTIN-FASTON .250 |
| 风格 | Housing |
| 安装类型 | Free Hanging (In-Line) |
| 材质 | Nylon |
| 端子尺寸 | 0.250" (6.35mm) |
| 位置数 | 6 |
| 注 | Contacts Not Provided |
| 配用/相关产品 | 0.250" (6.35mm) Quick Connects |
| 堆叠方向 | Top to Bottom and Side to Side |
| 终端类型 | Quick Connect, Disconnect |
| RoHS指令 | Lead free / RoHS Compliant |
| 阀体材质 | Nylon |
| 颜色 | Natural |
| 连接器类型 | Tab |
| 长度 | 32.4mm |
| 片宽度 | 6.3mm |
| 工厂包装数量 | 1200 |
| 安装方式 | Straight |
| 产品种类 | Headers & Wire Housings |
| 联系人性别 | Socket (Female) |
| 安装风格 | Free Hanging |
| 位置/触点数 | 6 |
| 闭锁类型 | Unlatched |
| 行间距 | 6.35 mm |
| RoHS | RoHS Compliant |
| 系列 | :FASTIN FASTON |
| No. of Positions | :6 |
| 节距 | :9.14mm |
| 可燃性等级 | :UL94V-2 |
| 房屋类型 | :Tab |
| MSL | :- |
| No. of Rows | :2 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :105°C |
| Weight (kg) | 0.004 |
| Tariff No. | 85369010 |
| Connectors application | for push-on 6.3mm connectors with lock |
| Terminal kind | male |
| Number of ways | 6 |
| Multiplicity | 1 |
| Gross weight | 5 g |
| Connector accessories type | terminals cover |
| Collective package [pcs] | 1 |
| spg | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
