te connectivity / amp

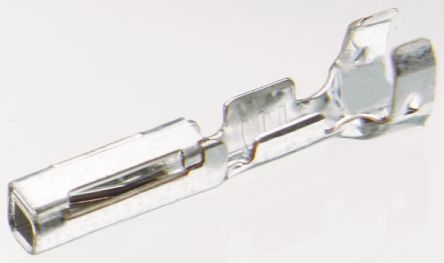

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector Headers and PCB Receptacles |
| 触点类型 | Signal |
| 触点电镀 | Pre-Tin |
| 性别 | SKT |
| 端接方式 | Crimp |
| 标准包装 | Tape & Reel |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Insulation Diameter (mm in) | 2.01 â 2.90 [0.079 â 0.114] |
| Lead Free Solder Processes | Not relevant for lead free process |
| TabReceptacle | Receptacle |
| 产品系列 | 70 |
| 要终止 | Wire |
| 专有名称 | MULTILOCK |
| 包装方式 | Strip |
| 片宽度（毫米） | 1.78 [0.07] |
| Wire Range (mm (AWG)) | 0.50-2.00² [20-14] |
| 触点区域镀层材料 | Pre-Tin |
| 产品类型 | Contact |
| RoHSELV符合记录 | Always was RoHS compliant |
| 触点材料 | KLF-5 |
| 线规 | 14-20 AWG |
| 触点表面涂层 | Tin |
| 封装 | Tape & Reel (TR) |
| 针脚或插座 | Socket |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 2000 |
| 产品 | Contacts |
| 额定电流 | 14 A |
| 工作温度范围 | - 30 C to + 105 C |
| 端接类型 | Crimp |
| RoHS | RoHS Compliant |
| ContactPlating | Tin |
| ContactResistance | 10mΩ |
| ForUseWith | AutomotiveConnector |
| 系列 | MultilockSeries |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | -30°C |
| Temperature,Operating,Range | -30to+105°C |
| 端子 | Crimp |
| 连接器类型 | 母座 |
| 系列 | MULTILOCK 070 |
| 最大电线尺寸 AWG | 14AWG |
| 端接方法 | 压接 |
| 最小电线尺寸 AWG | 20AWG |
| 最大电线尺寸 mm2 | 2mm² |
| 触点电镀 | 锡 |
| 最小电线尺寸 mm2 | 0.5mm² |
| 端子和接头种类 | Receptacle |
| 工组温度范围 | -30 – 105 °C [ -22 – 221 °F ] |
| 对接公端厚度 | .64 mm [ .024 in ] |
| 电线绝缘直径 | 2.01 – 2.9 mm [ .079 – .114 in ] |
| 压接类型 | F-Crimp |
| 封装数量 | 2000 |
| Wire Size (mm²) | .5 – 2 |
| 封装方法 | 卷 |
| Wire Size Search (AWG) | 14, 15, 16, 17, 18, 19 |
| Primary Locking Feature | Clean Body |
| Typical Current Rating (A) | 14 |
| Terminal Transmits | 0 – 24 A (Low Power) |
| 插座样式 | 180° |
| Wire Size Search (mm²) | .5, .6, .75, .85, 1, 1.25, 1.3, 1.5, 2 |
| 密封性 | 否 |
| 端子端接区域电镀材料 | 锡 (Sn) |
| 对接公端宽度 | 1.8 mm [ .07 in ] |
| 接触面电镀 | 锡 (Sn) |
