te connectivity / amp

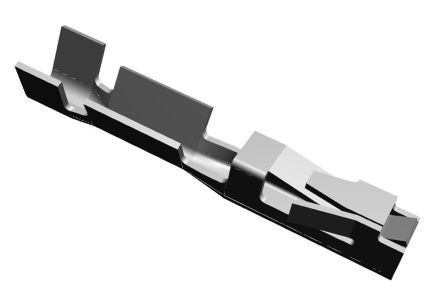

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector Headers and PCB Receptacles |
| 触点类型 | Signal |
| 触点材料 | Phosphor Bronze |
| 触点电镀 | Gold Over Nickel |
| 性别 | SKT |
| 端接方式 | Crimp |
| 标准包装 | Tape & Reel |
| RoHS | RoHS Compliant |
| 产品种类 | Headers & Wire Housings |
| 产品类型 | Contacts |
| 系列 | AMPMODU MOD II |
| 联系人性别 | Socket (Female) |
| 安装风格 | Wire |
| 端接类型 | Crimp |
| 额定电流 | 3 A |
| 封装 | Reel |
| 工厂包装数量 | 14000 |
| 商品名 | AMPMODU |
| 线规 | 24-20 |
| 评论 | Reverse Reeled For Mini Applicator |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 端子尾部电镀 | Gold Flash over Nickel |
| 品牌 | AMP |
| PinSocket | Socket |
| 包装方式 | Strip |
| 接线方式 | Crimp |
| 包装数量 | 12,500 |
| 导线绝缘直径（毫米） | 0.91 â 1.37 [0.035 â 0.054] |
| Wire Range (mm (AWG)) | 0.20-0.60² [24-20] |
| 触点区域镀层材料 | Gold (30) over Nickel (30) |
| RoHSELV符合记录 | Always was RoHS compliant |
| 触点表面涂层 | Gold |
| 针脚或插座 | Socket |
| Contact Finish Thickness | 30µin (0.76µm) |
| 类型 | Signal |
| 接触端子 | Crimp |
| RoHS指令 | Lead free / RoHS Compliant |
| 适用于 | :AMPMODU Machine Applied |
| Wire Size AWG Min | :24AWG |
| Wire Size AWG Max | :20AWG |
| 线径规格 | :20AWG |
| Wire Size (AWG) | :24AWG to 20AWG |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| 连接器 | contact |
| Multiplicity | 14000 |
| Connector type | female |
| Gross weight | 0.16 g |
| Connector series | AMPMODU |
| 接触镀层 | gold plated |
| 安装 | crimped, on cable |
| Wire cross section | 0.2...0.6mm2 |
| Collective package [pcs] | 100 |
| spg | 100 |
